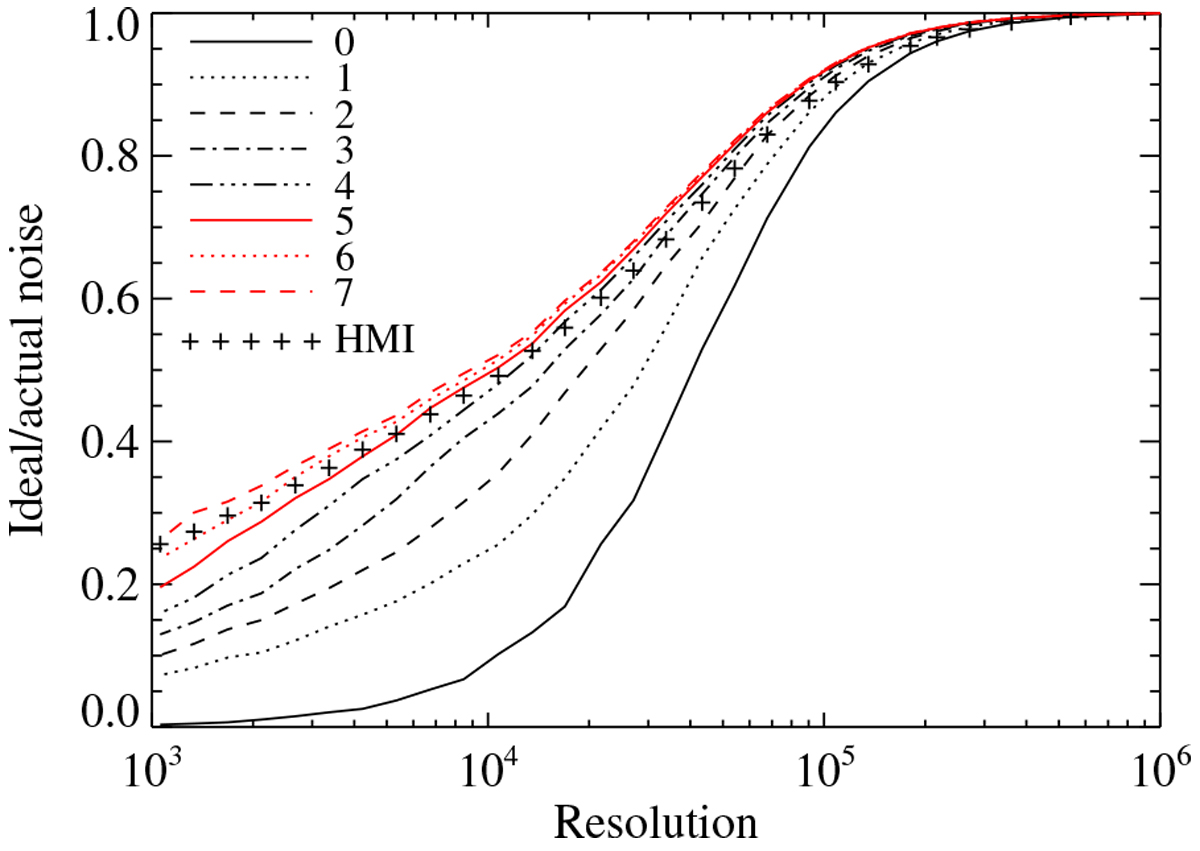

Fig. 8

Download original image
As Fig. 5, but for various numbers of elements, as given by the legend. The FSRs increase by a factor of two between the elements, and the FSR of the longest element is chosen to be optimal separately for each resolution and number of elements. The performance of the HMI elements with all the polarizers replaced by Wollaston prisms is shown with plusses.
