Fig. B.1.
Download original image

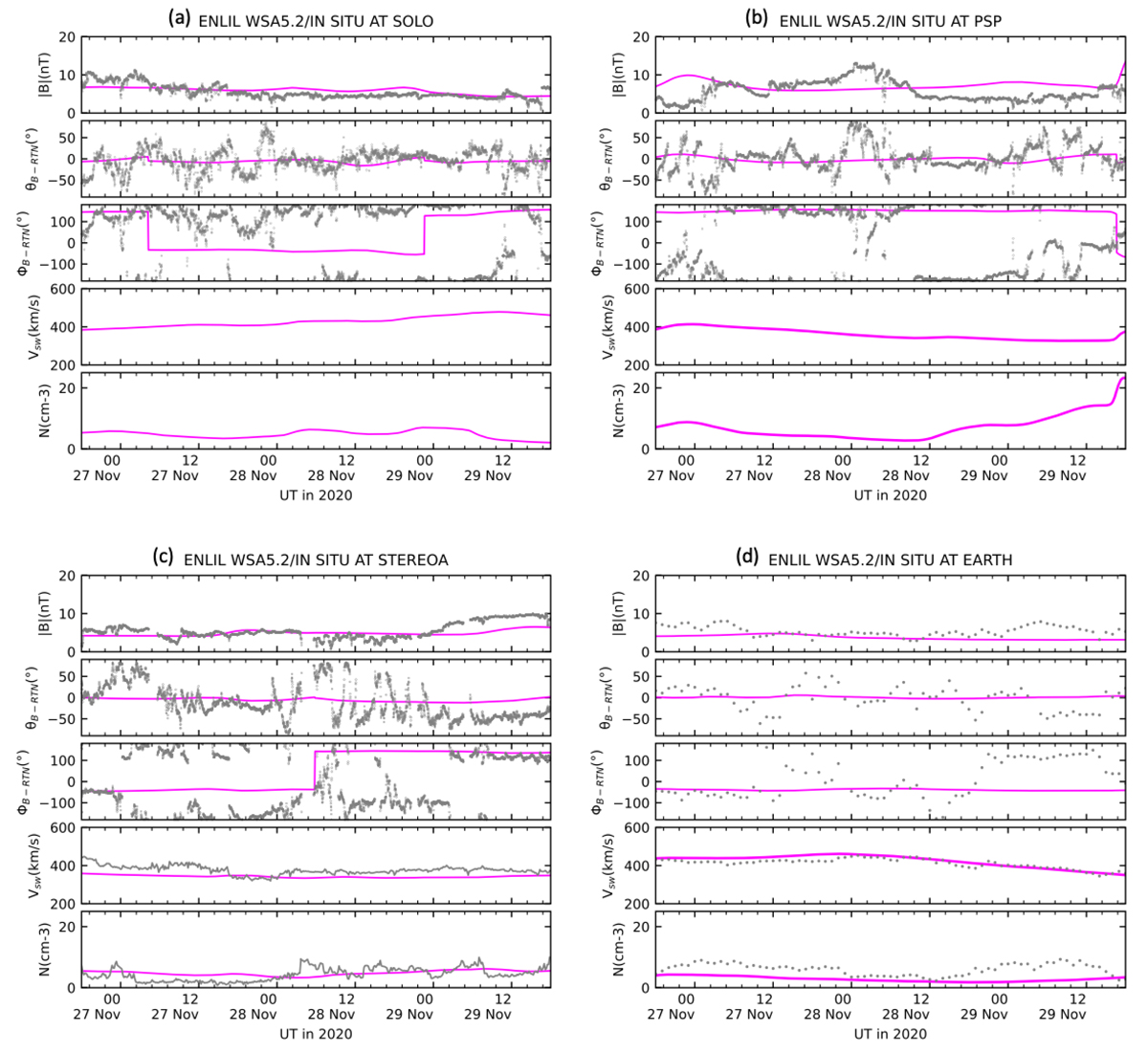

In situ observations at the locations of SolO (a), PSP (b), STEREO-A (c), and Earth (d) over-plotted with the ENLIL results (pink line) for the three days prior to the estimated SEP release time. From top to bottom, the panels show magnetic field strength, the magnetic field latitudinal and azimuthal angles, θB − RTN and ϕB − RTN, and solar wind proton speed and density.
