Fig. 3.
Download original image

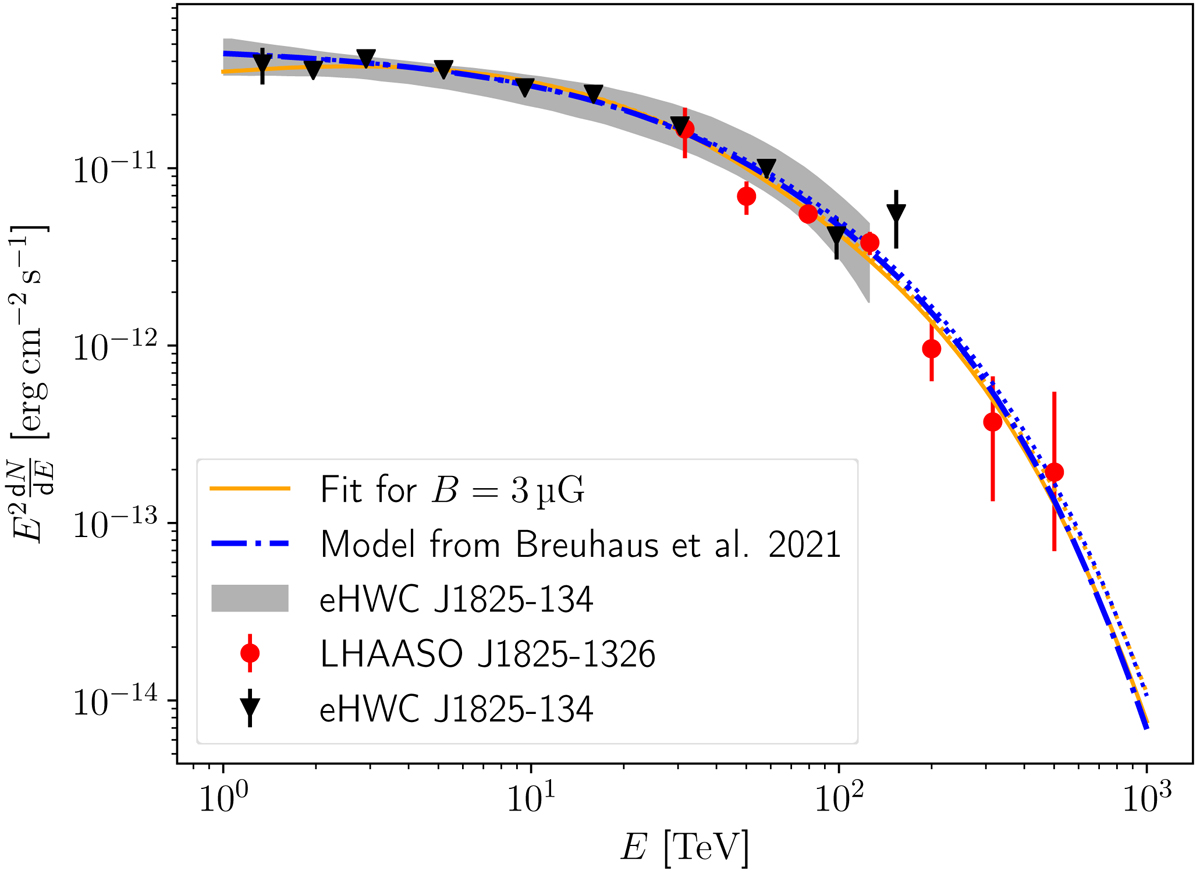

Model fit for LHAASO J1825−1326 and eHWC J1825−134 together with the corresponding data and the model from B21 for eHWC J1825−134. Red data points show the data from the LHAASO collaboration (Cao et al. 2021a) and the black triangles data from the HAWC collaboration for eHWC J1825−134. The blue band shows the systematic and statistical error for eHWC J1825−134 (Abeysekara et al. 2020) and the dashed-dotted blue line the corresponding model from B21 extended to higher energies and corrected for absorption. The orange curve represents the joint fit to the data from HAWC and LHAASO for B = 3 μG, resulting in Ṅ0 = 5 × 1035 erg−1 s−1, α = 2.23, and Ecut = 390 TeV. The fit result for the association with PSR J1826−1256 is nearly identical to the orange curve. The dotted lines in the corresponding colours show the emission without absorption.
