Fig. B.3
Download original image

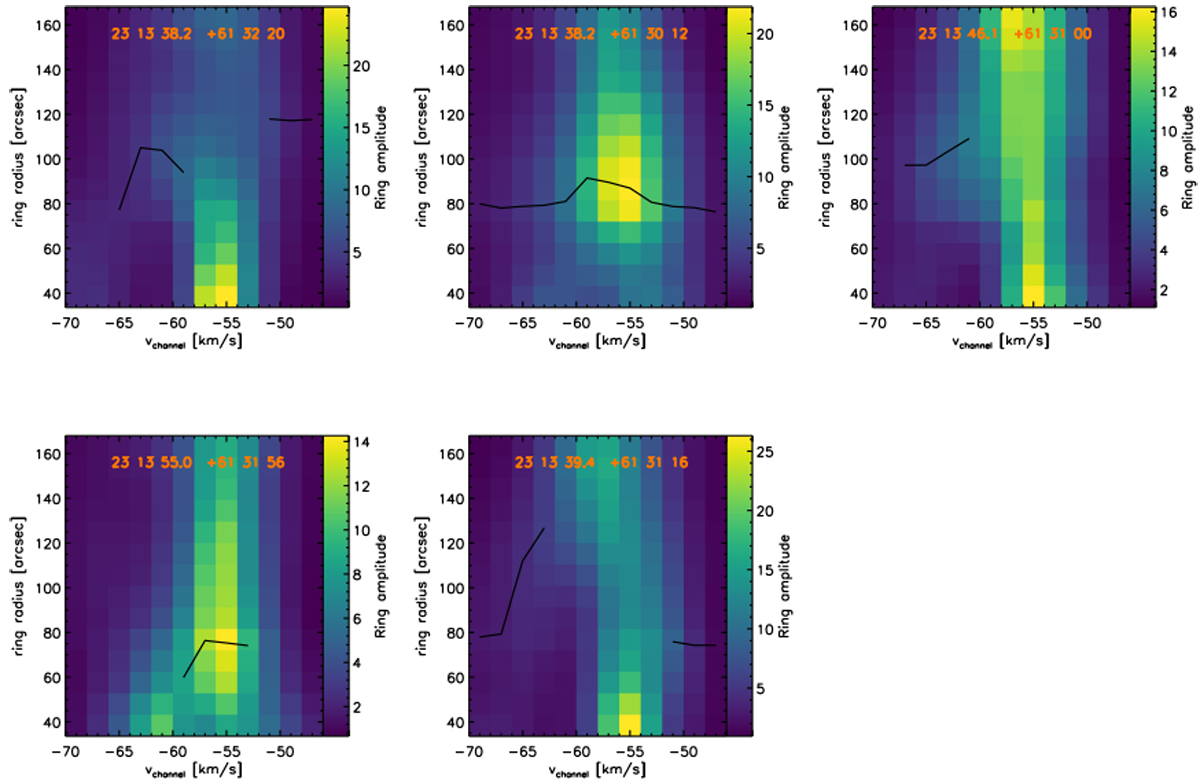

Covariance coefficients at the positions of the five prominent clusters from Fig. B.2. The coefficients are shown as a function of the channel velocity and the ring radius used in the convolution. The black lines mark the maxima of the covariance coefficients in terms of the ring radius. In those channels without black line, no ring could be identified.
