Fig. A.3
Download original image

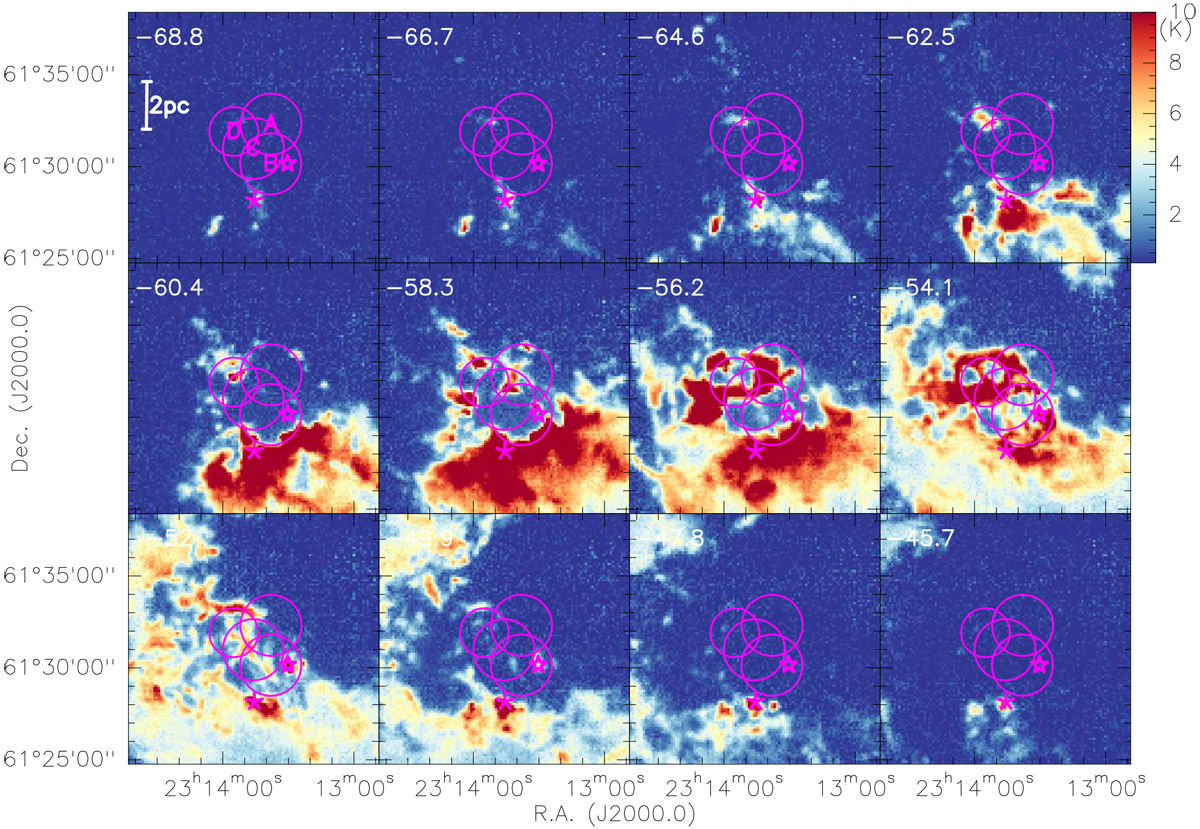

CO(3–2) channel map for the velocities labeled in each panel. The data are plotted in steps of 2.1 km s−1 (5 channels). The two purple stars mark the positions of IRS1 and IRS5, and a scale bar is shown in the top-left panel. The intensities are always plotted linearly from 0.1 to 10 K. The purple circles outline potential bubbles. These bubbles are labeled in the top-left panel.
