Fig. 11
Download original image

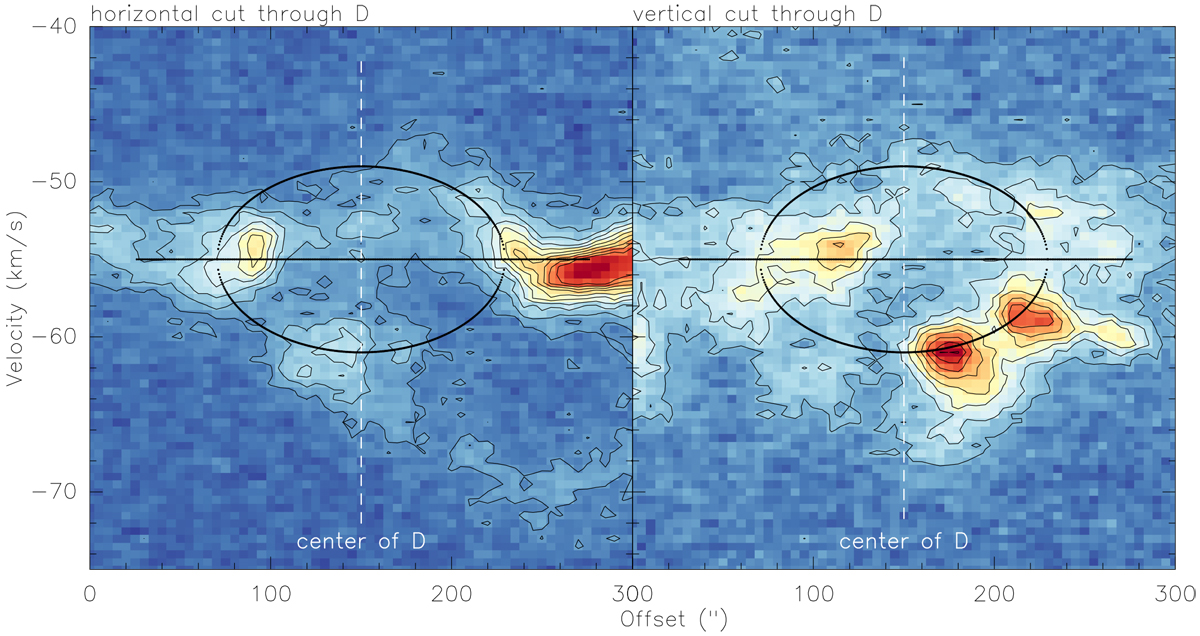

Horizontal (left) and vertical (right) position-velocity diagrams through the center of bubble D (marked in each panel) derived from the [CII] line emission. The contour levels are in 3σ steps. The black dotted lines outline the elliptical shape a spherical shell would have in the pv diagram – given a radius of 80″ and expansion velocities of 6 km s−1.
