Fig. 11.
Download original image

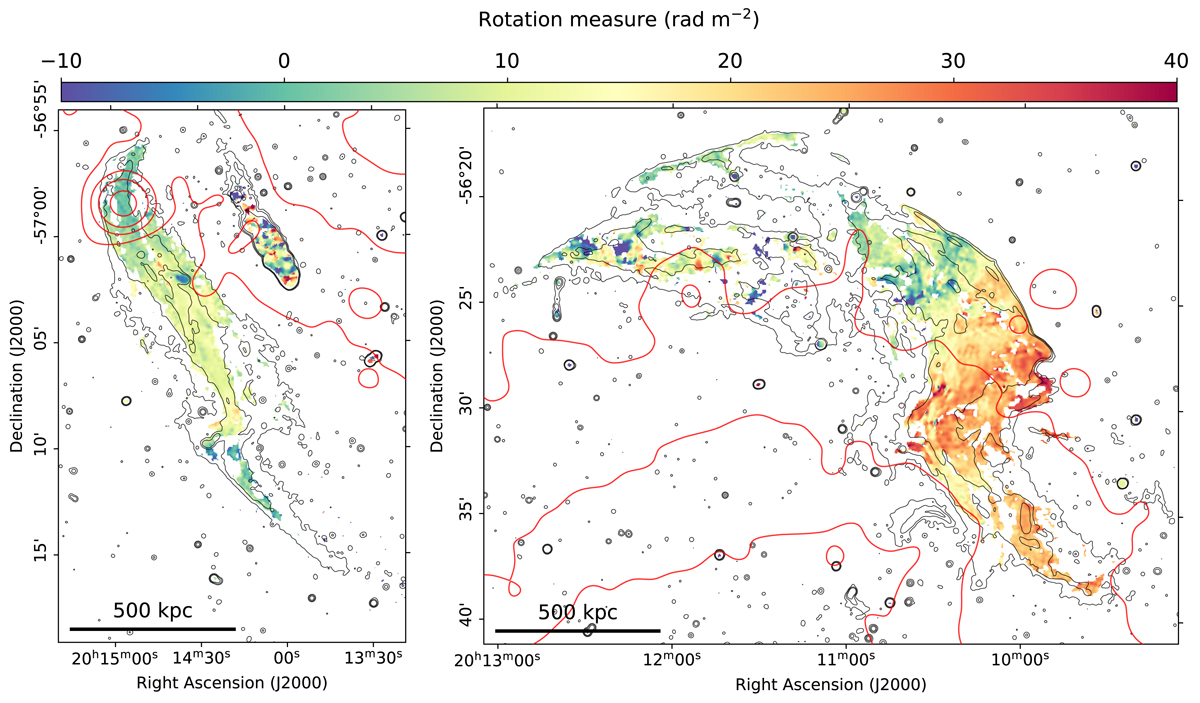

Rotation measure map at the resolution of 10″ × 10″. Local estimates for the Galactic Faraday rotation (ϕ = 39.5 rad m−2 for the NW relic and ϕ = 55.0 rad m−2 for the SE relic) have been subtracted. Regions with a polarisation signal lower than 7σP (σP = 3.6 μJy beam−1) are blanked. Red contours show the X-ray emission from the ICM. Black contours are the same as in Fig. 8.
