Fig. C.3
Download original image

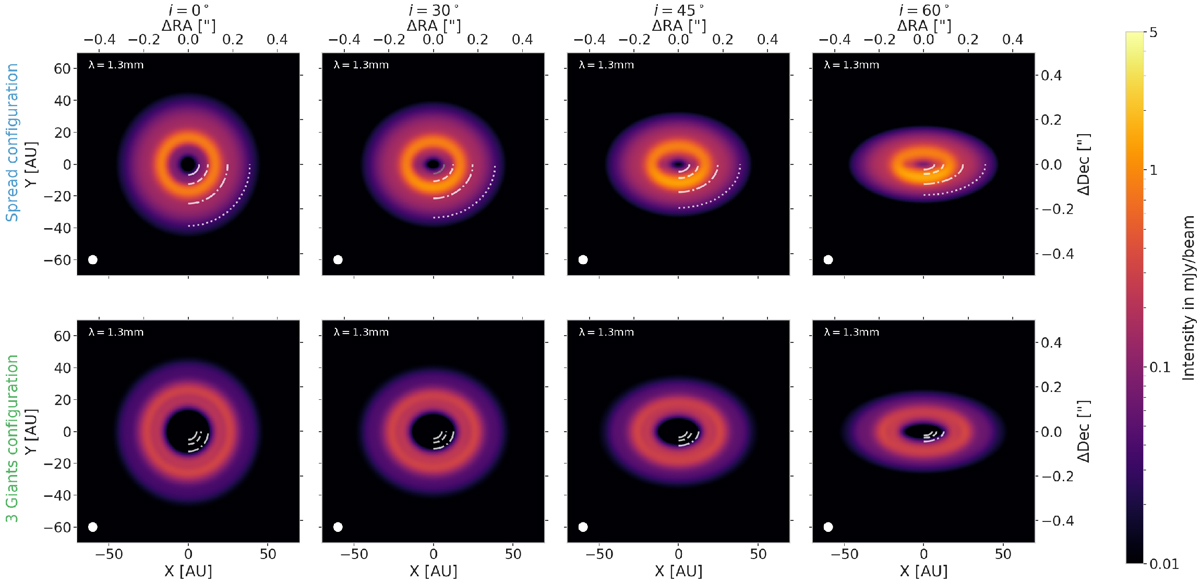

Images at λ =1.3mm in the Spread (first row) and Three-Giants (second row) configuration, at low viscosity and low aspect ratio, for different inclinations. The inclination is increasing from left to right, going from a face-on disk (i = 0°) to a highly inclined disk (i = 60°). The white lines represent the positions of the different planets in each configuration.
