Fig. 11.

Download original image

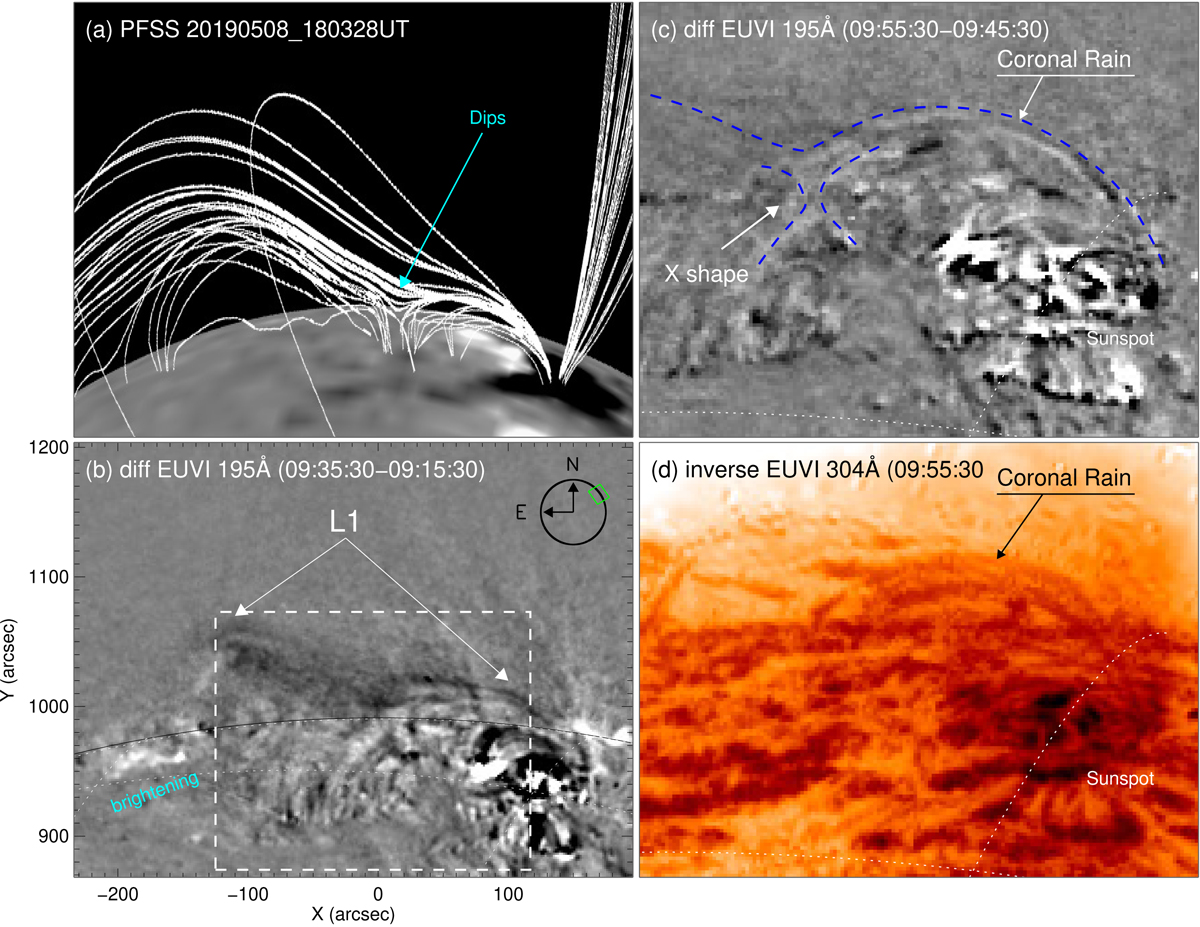

Magnetic topology and related coronal rain flows near the source region of sunspot supersonic downflows. (a) Reconstructed magnetic topology from the PFSS model. (b) Observed morphological topology in EUVI 195 Å running-difference image at around 09:35 UT. The solar disk and the FOV of these images are shown as the white circle and the green rectangle, respectively. “L1” denotes the upward-moving coronal loops from the X-shaped structure. Near the left feet of “L1”, a weak brightening signal was observed. (c) EUVI 195 Å running-difference image and (d) 304 Å image (panel d, using reversed color table) taken at 09:56 UT. The FOV of panels c and d is shown as the dashed-line rectangle in panel b. The coronal rain and the X-shaped structure below the dip are marked by the arrows. The dashed lines outline the possible magnetic field geometry. An animation showing the temporal evolution of panels c and d from 02:00−12:55 UT is available online.
