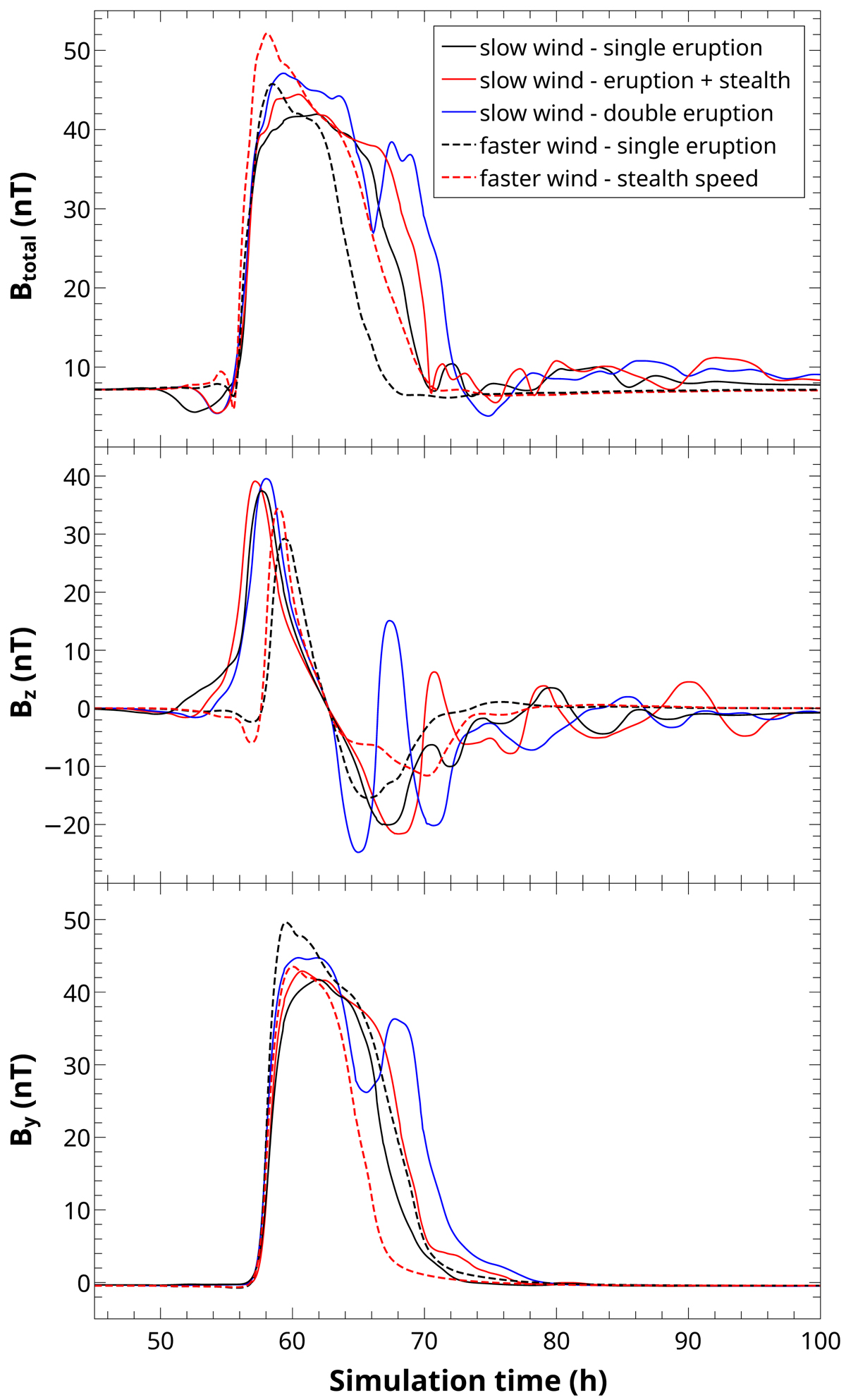

Fig. 9.
Download original image
Magnetic field components simulated in all five cases, taken on the equatorial plane at 75 R⊙. All simulation data are shifted and aligned with the last arriving CME, which occurs in the slow wind, single eruption case. Btotal and By have their fronts aligned, whereas Bz is aligned at the point where the values change sign inside the first main CME.
