Fig. A.1
Download original image

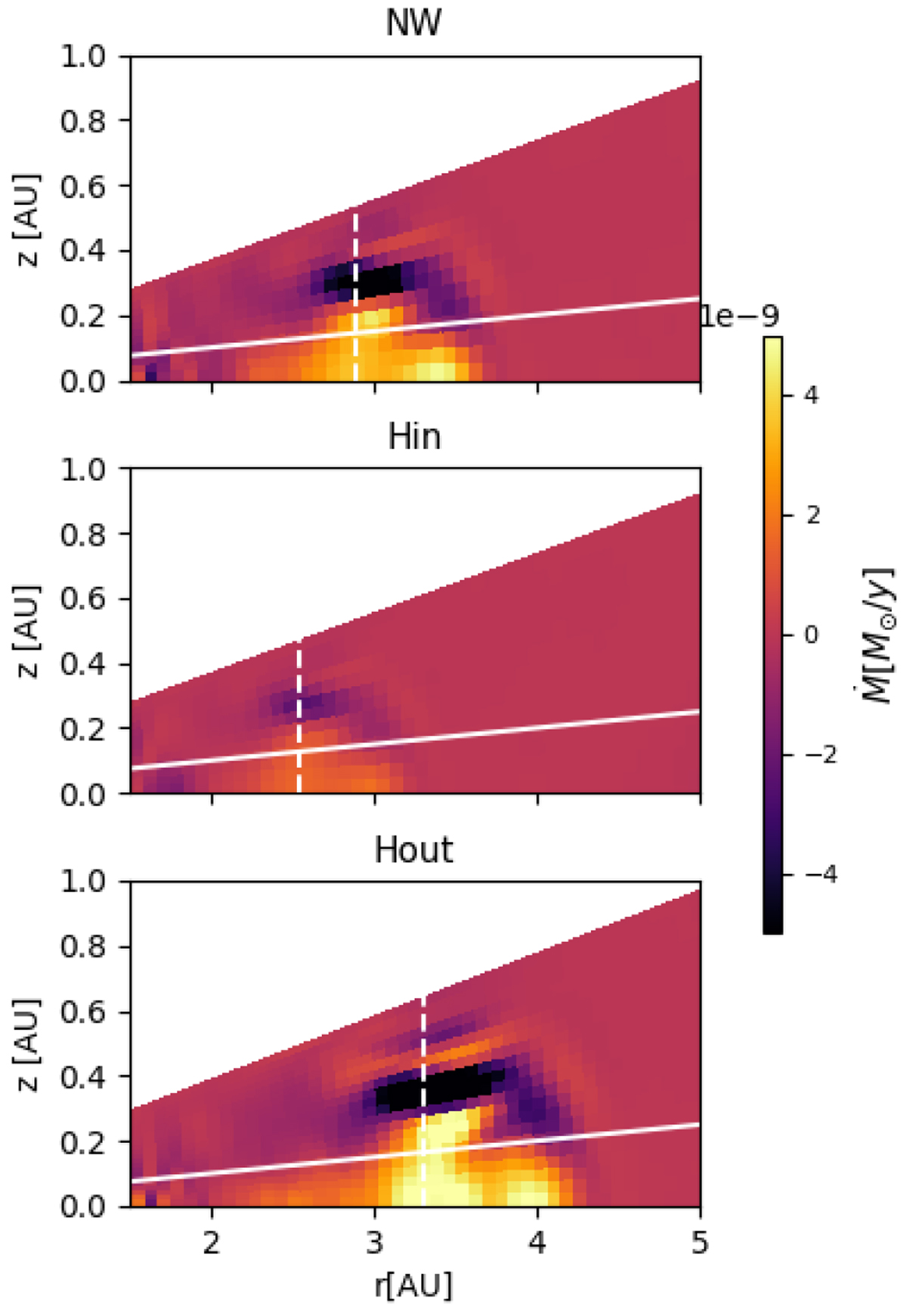

Azimuthally averaged radial flow in the plane r − z at time t = 83004 yr for simulations sets NW, Hin and Hout. In simulations Hin and Hout a synthetic torque is applied below the disc scale height indicated in the figure by the white continous line. The dashed vertical line indicates the position of the 1:2 mean motion resonance considering planet position at time t = 83004 yr.
