Fig. 2.


Download original image

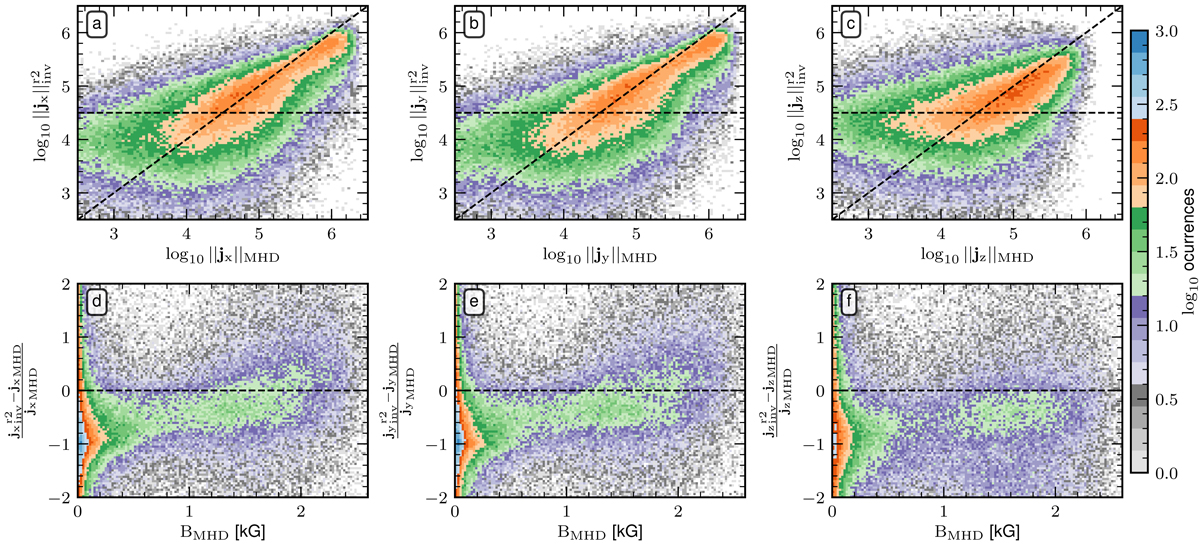

Electric current components for the second inversion setup () as compared to the MHD case for the τ5 = 0.1 isosurface. Panels a–c: bidimensional histogram of each electric current vector component (x, y, z) as compared to the MHD ones (jMHD). The horizontal black-dashed line highlights the floor electric current value found for ||j||MHD > 104.4 g1/2 cm−1/2 s−2 and the oblique one the one-to-one relation. Panels d–f: dependence with the MHD magnetic field strength of the relative error of each electric current vector component (x, y, z) as compared to the MHD cases (jMHD). The horizontal black-dashed line highlights the equality line. The color code is the decimal logarithm of the occurrences.
