Fig. 40


Download original image

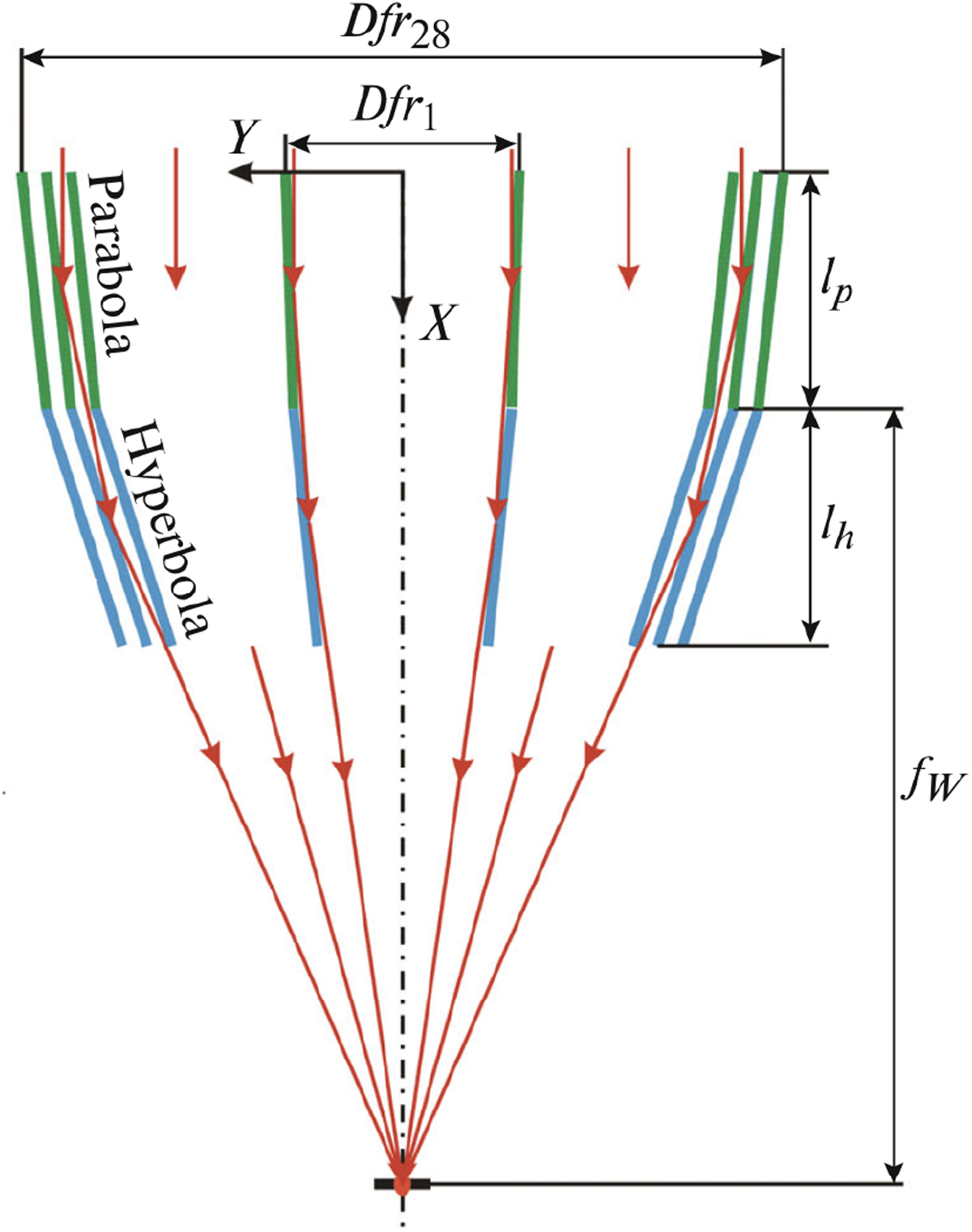

Wolter-I optical scheme of ART-XC. Dfr28 and Dfr1 are the entrance apertures of the outermost and innermost shells, respectively, lh and lp are the heights of the paraboloids and hyperboloids, respectively, and fW is the focal length of the mirror system. Adapted from Pavlinsky et al. (2020).
