Fig. 5.
Download original image

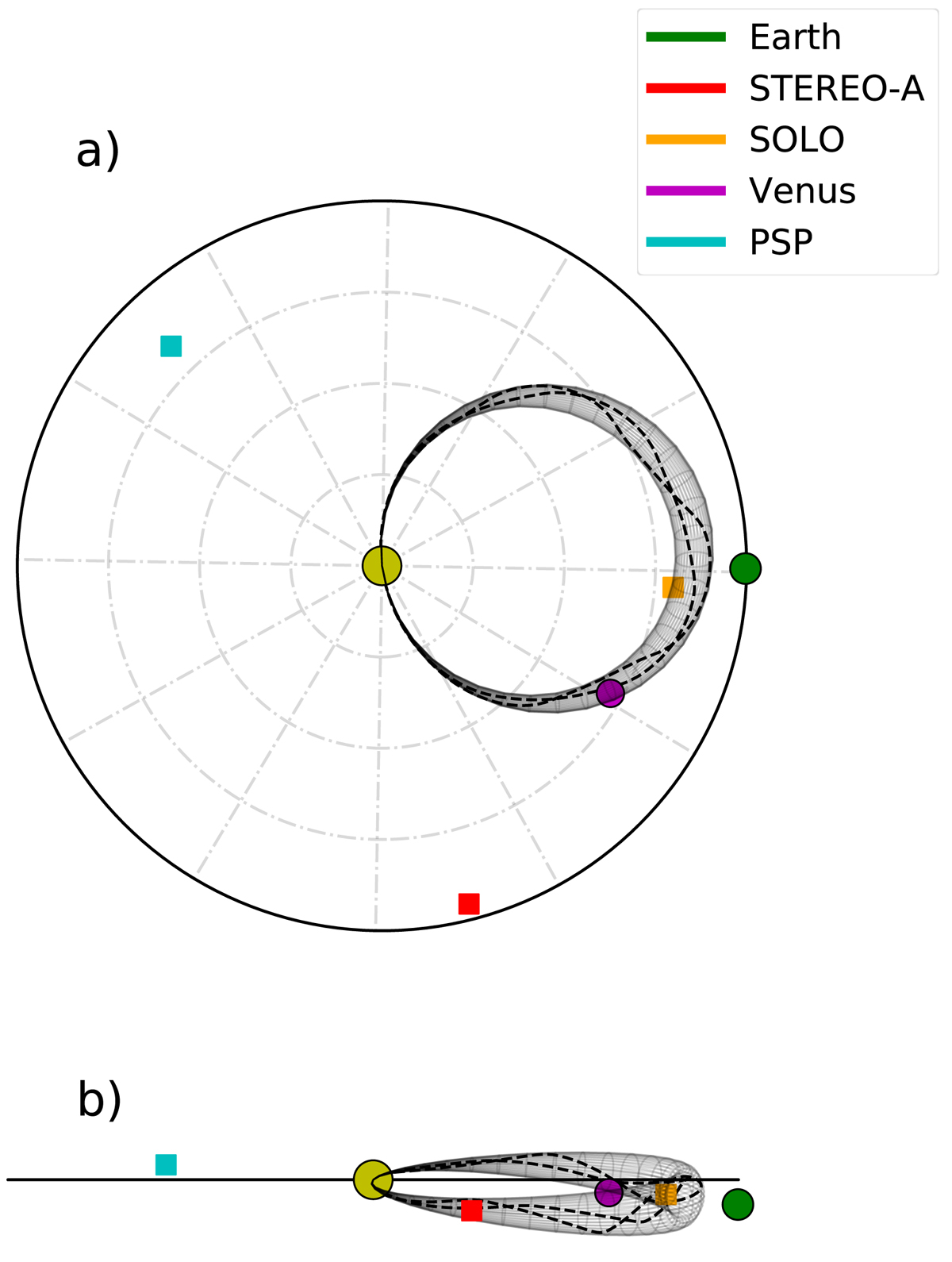

Three-dimensional reconstruction of the event using a single representative parameter combination from the 3DCORE ensemble solution. Top panel: top-down view of the 3DCORE geometry within the solar system up to 1 AU with two embedded magnetic field lines (dashed). Bottom panel: side view of the 3DCORE geometry which shows the chosen cross-section aspect-ratio of 2.
