Fig. 8.

Download original image

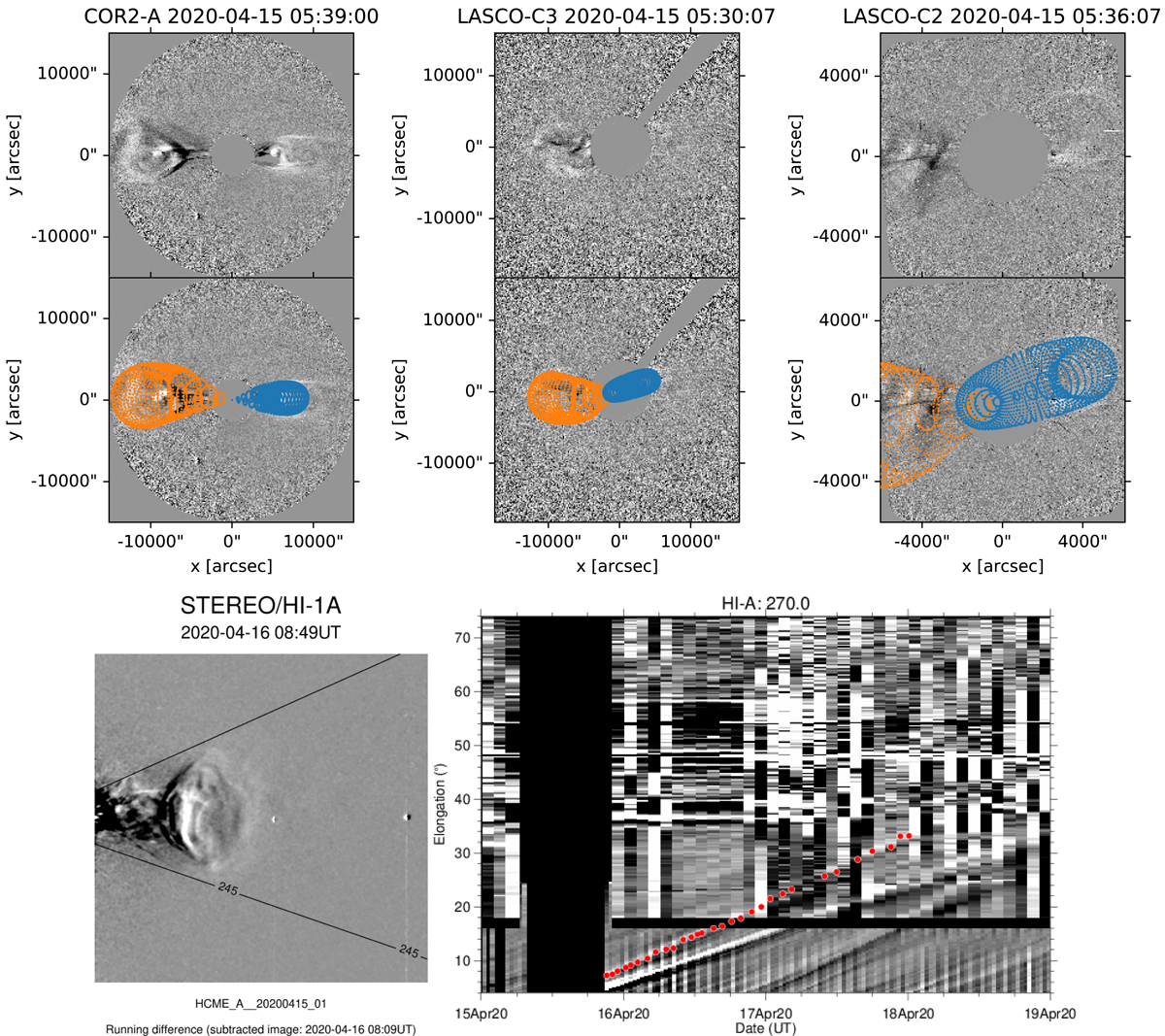

Remote sensing observations of the CME. In the STEREO-A COR2 and SOHO LASCO C2 and C3 running difference images (top part), the GCS fitting was applied to derive the parameters R0 and a0 for the ForbMod model (see results in Table 2). The blue markings denote the Earth-directed CME we are investigating, while the CME fitted in orange is backsided and launched a few hours earlier. STEREO-A HI observations (bottom left) and time-elongation maps (bottom right) are provided by the HELCATS project.
