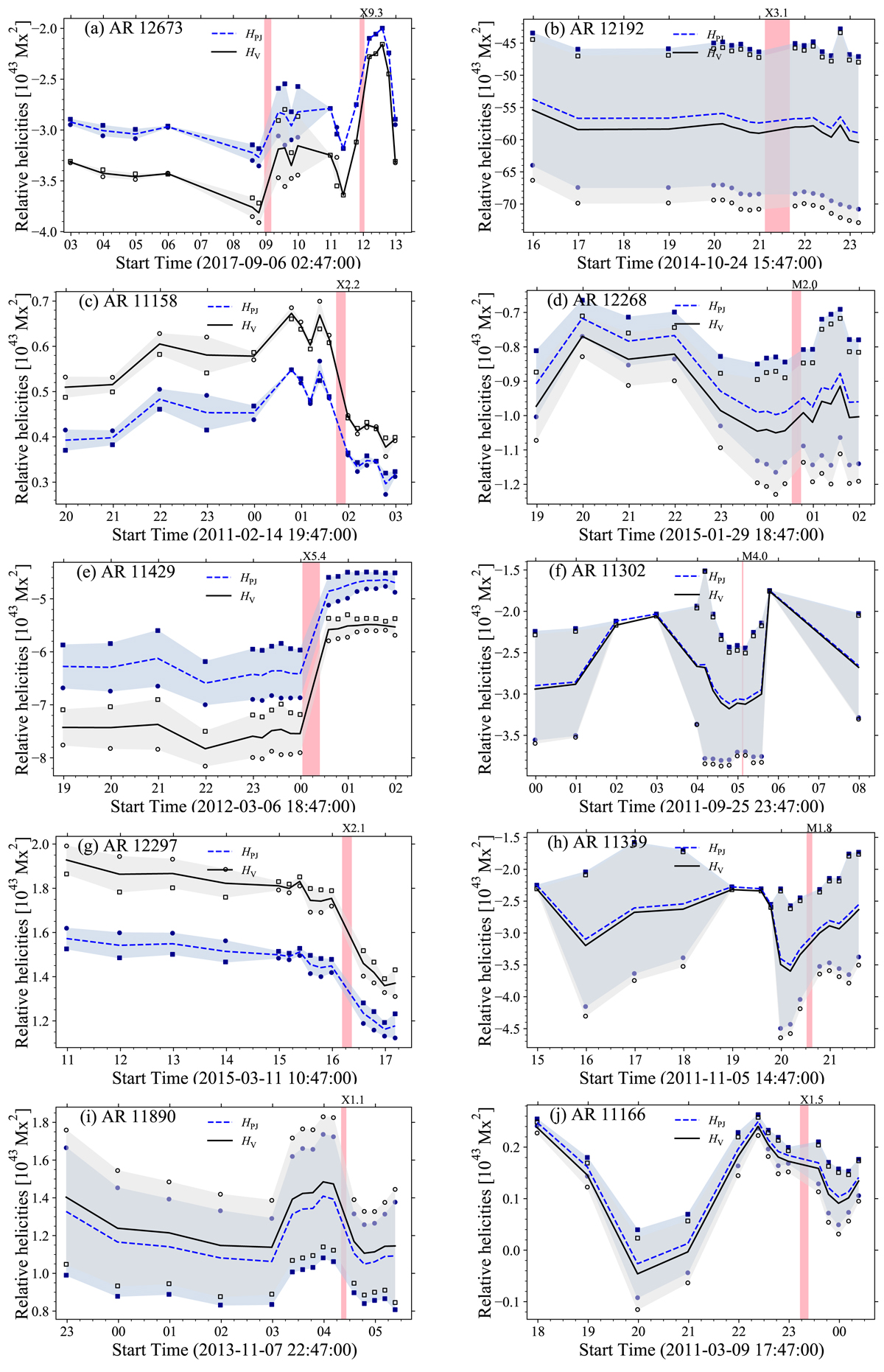

Fig. 2.

Download original image
Time evolution of the relative magnetic helicity HV and volume threading helicity HPJ for the ten ARs under study. Quantities for ARs productive of large eruptive and confined flares are shown in the left and right columns, respectively. Squares (bullets) indicate the solutions based on enhanced (standard) divergence freeness. The gray (light-blue) shaded areas mark the spread of HV (HPJ), and the solid-black (dashed-blue) curve indicate the respective average values of HV (HPJ). The vertical bar marks the impulsive flare phase.
