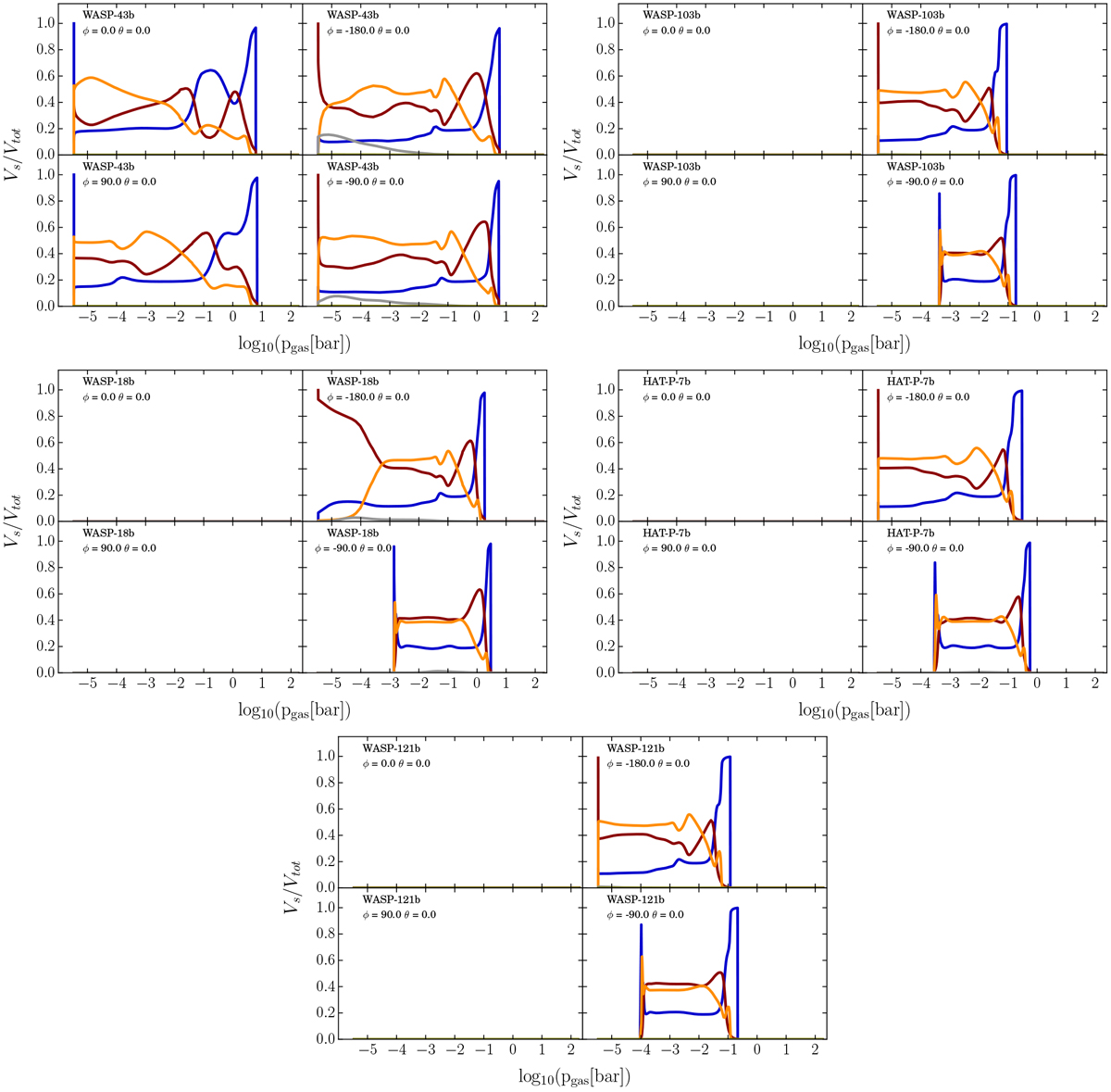

Volume fractions V_s∕V_tot of the material groups as defined in Table 2 (blue: high temperature condensates, red: metal oxides, orange: silicates, grey: carbon, olive: salts). Sub-stellar point: (ϕ, θ) = (0.0°, 0.0°), anti-stellar point: (ϕ, θ) = (−180.0°, 0.0°), equatorial morning terminator: (ϕ, θ) = (−90.0°, 0.0°), equatorial evening terminator: (ϕ, θ) = (90.0°, 0.0°). There are no salt condensate species included for WASP-18b and HAT-P-7b due to their very low abundance. Empty panels represent profiles without cloud formation.
