Fig. A.4

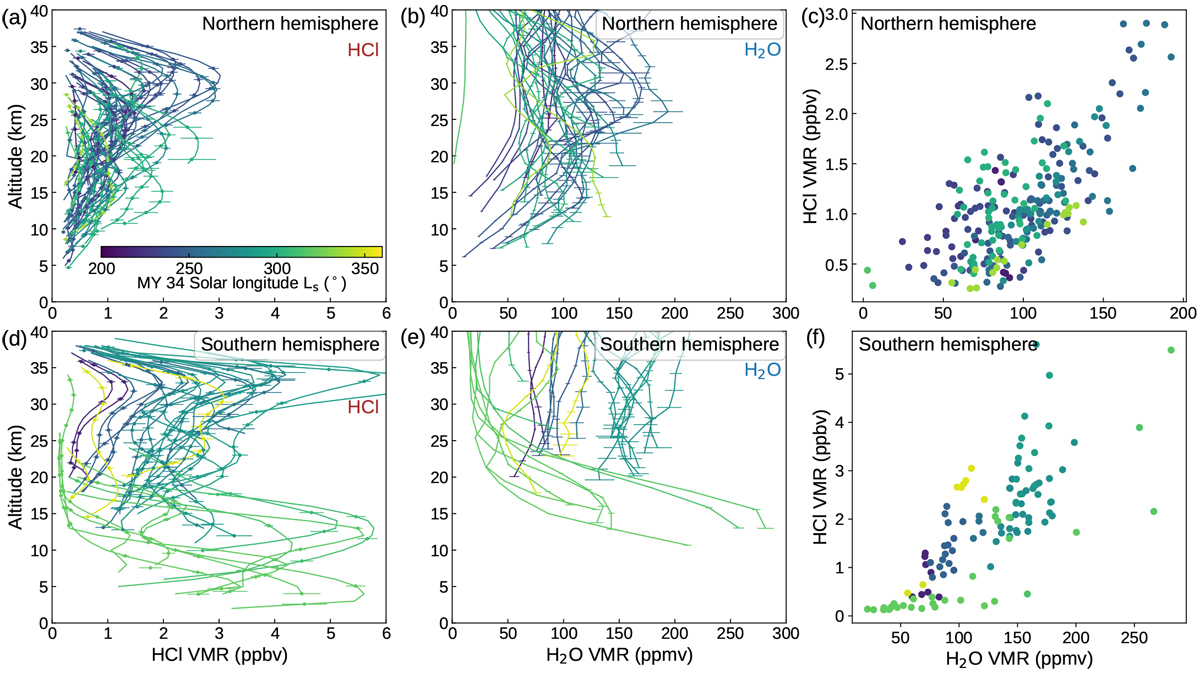

Comparison of the retrieved vertical profiles of HCl from ACS MIR and H2 O from ACS NIR during MY 34 perihelion. Panel a: VMR vertical profiles of HCl from the northern hemisphere. Panel b: VMR vertical profiles of H2O from the northern hemisphere. Panel c: scatter plot comparing northern hemisphere HCl and H2 O at overlapping tangent heights. The Pearson correlation coefficient is 0.68. Panel d: VMR vertical profiles of HCl from the southern hemisphere. Panel e: VMR vertical profiles of H2 O from the southern hemisphere. Panel f: scatter plot comparing southern hemisphere HCl and H2 O at overlapping tangent heights. The Pearson correlation coefficient is 0.73.
