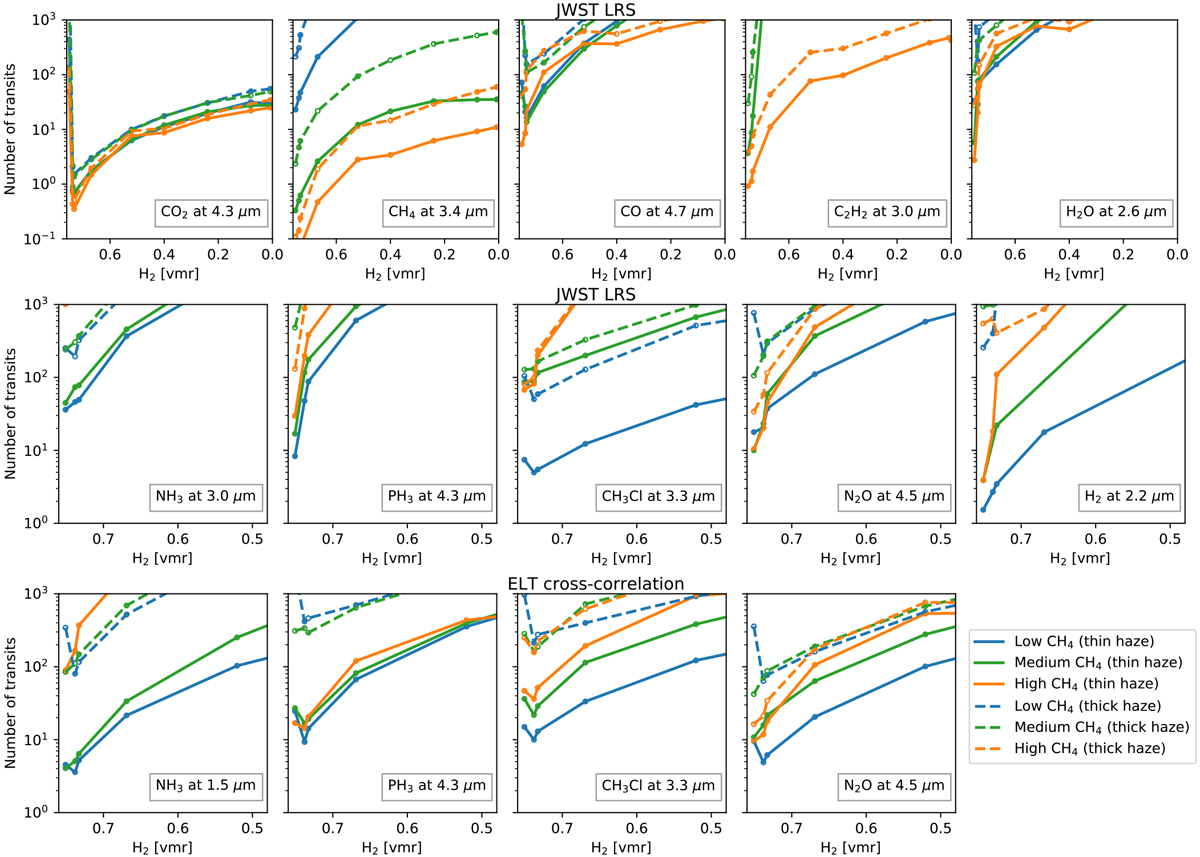

Fig. 8


Number of transits required to reach a S/N of 5 for the corresponding spectral features in a cloud free atmosphere with thin (solid lines) and thick (dashed lines) hazes using low-resolution transmission spectroscopy with JWST NIRSpec PRISM (upper and middle panels) and the cross-correlation technique with high-resolution transmission spectroscopy using ELT HIRES or METIS (lower panels). The x-axis of the upper panel is different from the middle and lower panels. Each colored circle corresponds to one scenario from Table 3. Blue lines and circles show low CH4 scenarios, green lines and circles show medium CH4 scenarios, and orange lines and circles show high CH4 scenarios.
