Fig. 3

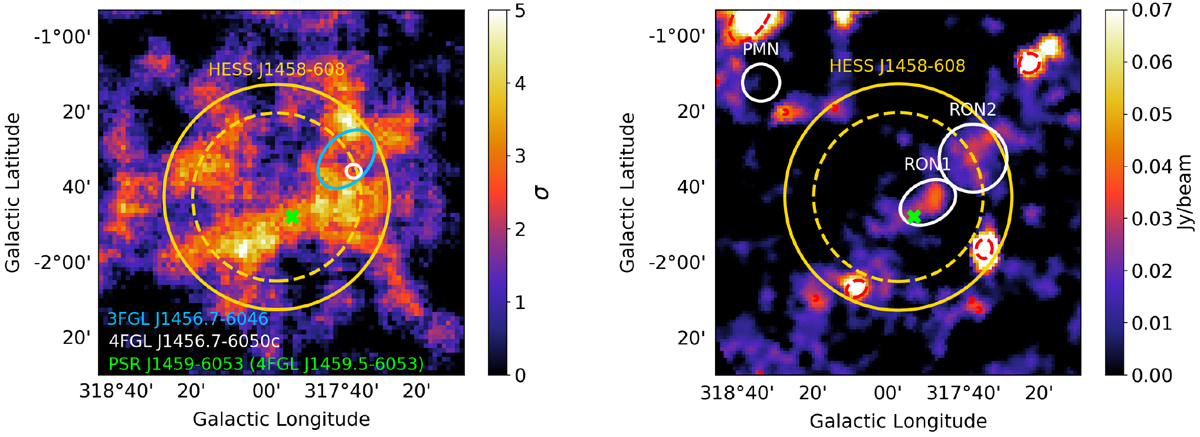

Left: HGPS significance map (obtained with a correlation radius of 0.1°) centered on HESS J1458−608. The size and spectral extraction radius Rspec of HESS J1458−608 are represented by the dashed and solid yellow circles, respectively. The blue and white circles correspond to the 95% position uncertainties of the Fermi-LAT cataloged sources, while the green cross represents the position of PSR J1459−6053 (associated with 4FGL J1459.5−6053). Right: PMN map at 4.85 GHz with the radio cataloged sources outside the ON regions represented in red. The flux extraction regions appear in white (RON1 and RON2) and the FWHM of the PMN is represented at the top left of the image. The yellow circles are the same as those in the left panel.
