Fig. 4.

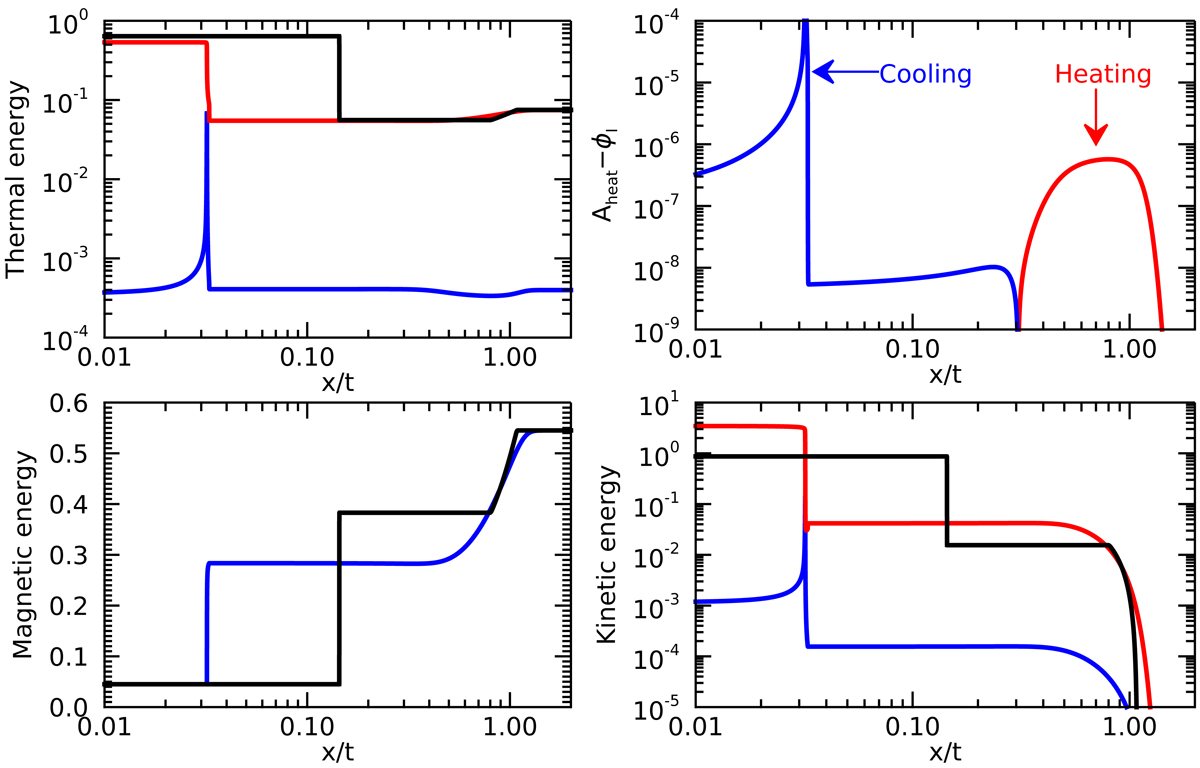

Energies across the system for the MHD (black) and IRIP cases (red neutrals, blue plasma). The quantity Aheat − ϕI shows the balance between the heating and loss terms in the energy equation, where red denotes net energy addition (heating) and blue is net energy loss (cooling).
