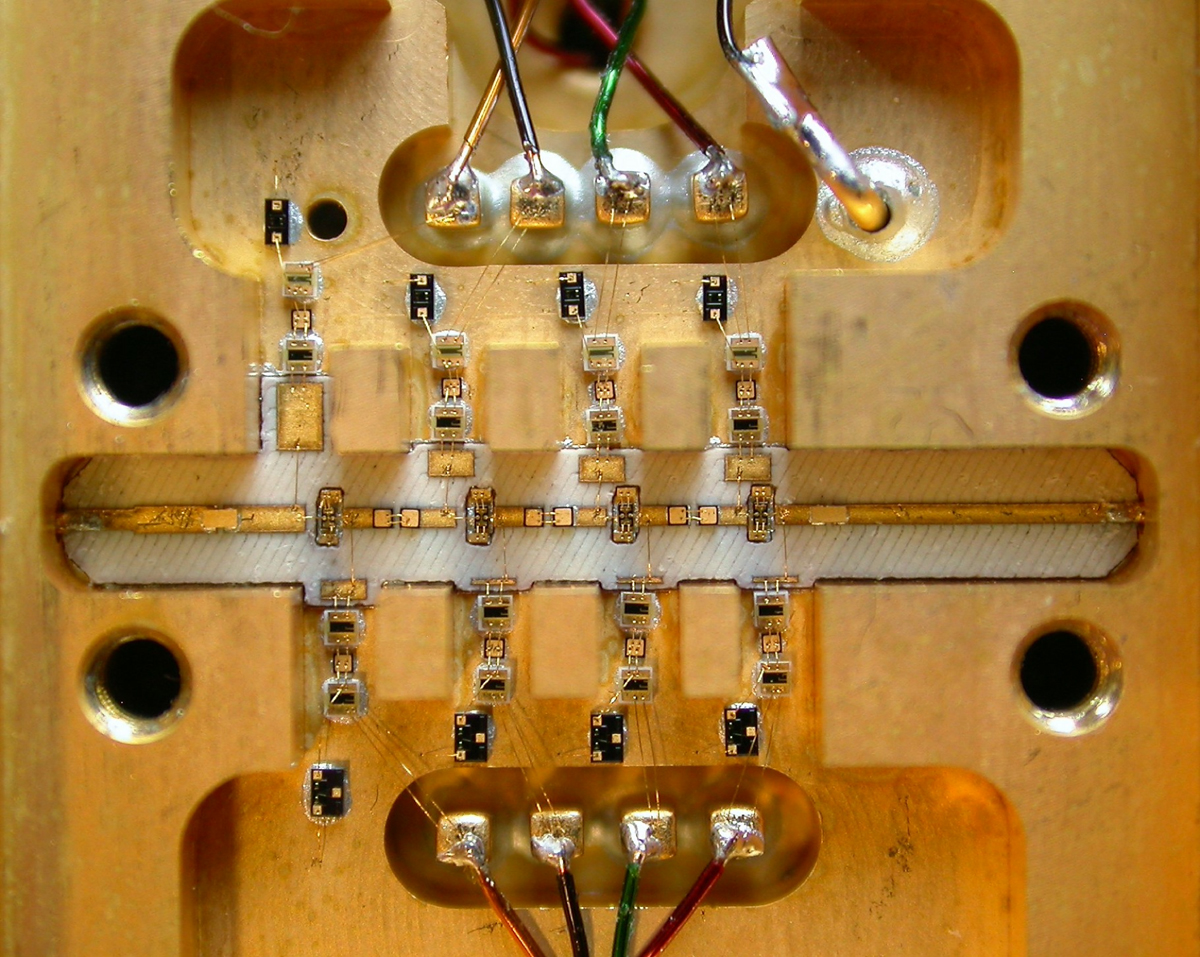

Fig. 8.
Inner view of the Q band cryogenic amplifier module showing the four transistor stages, the microstrip matching networks, and the biasing components. Overall block dimensions are 43 × 29.5 × 10 mm including the waveguide transitions.
