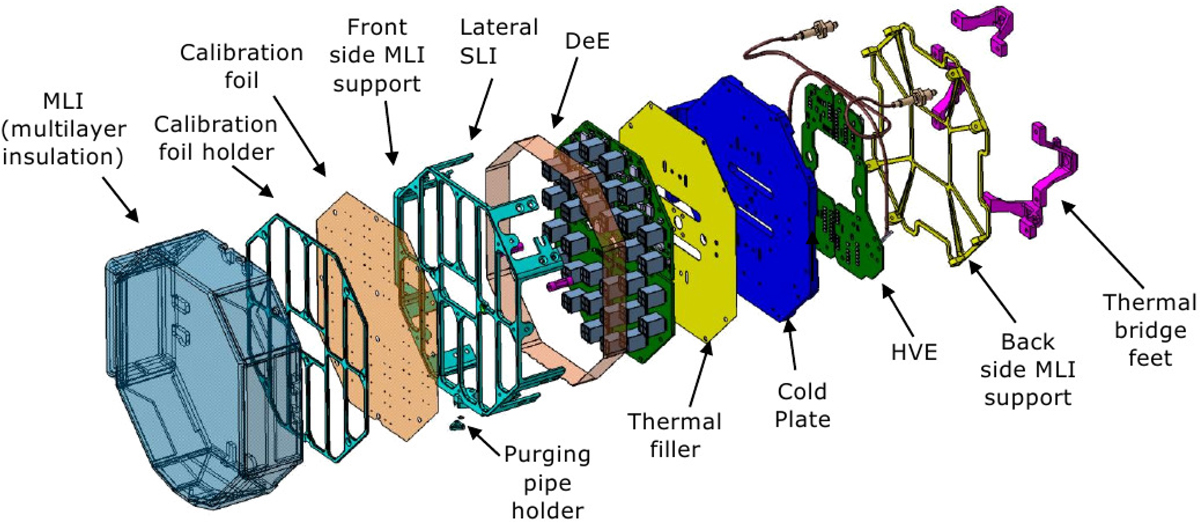

Fig. 14.

Exploded view of the cold unit. The cold plate (blue) is connected to the spacecraft radiator, the front-end electronics are mounted on this plate. This is enclosed by multi-layer insulation and supported by Vetronite thermal bridge feet (pink).
