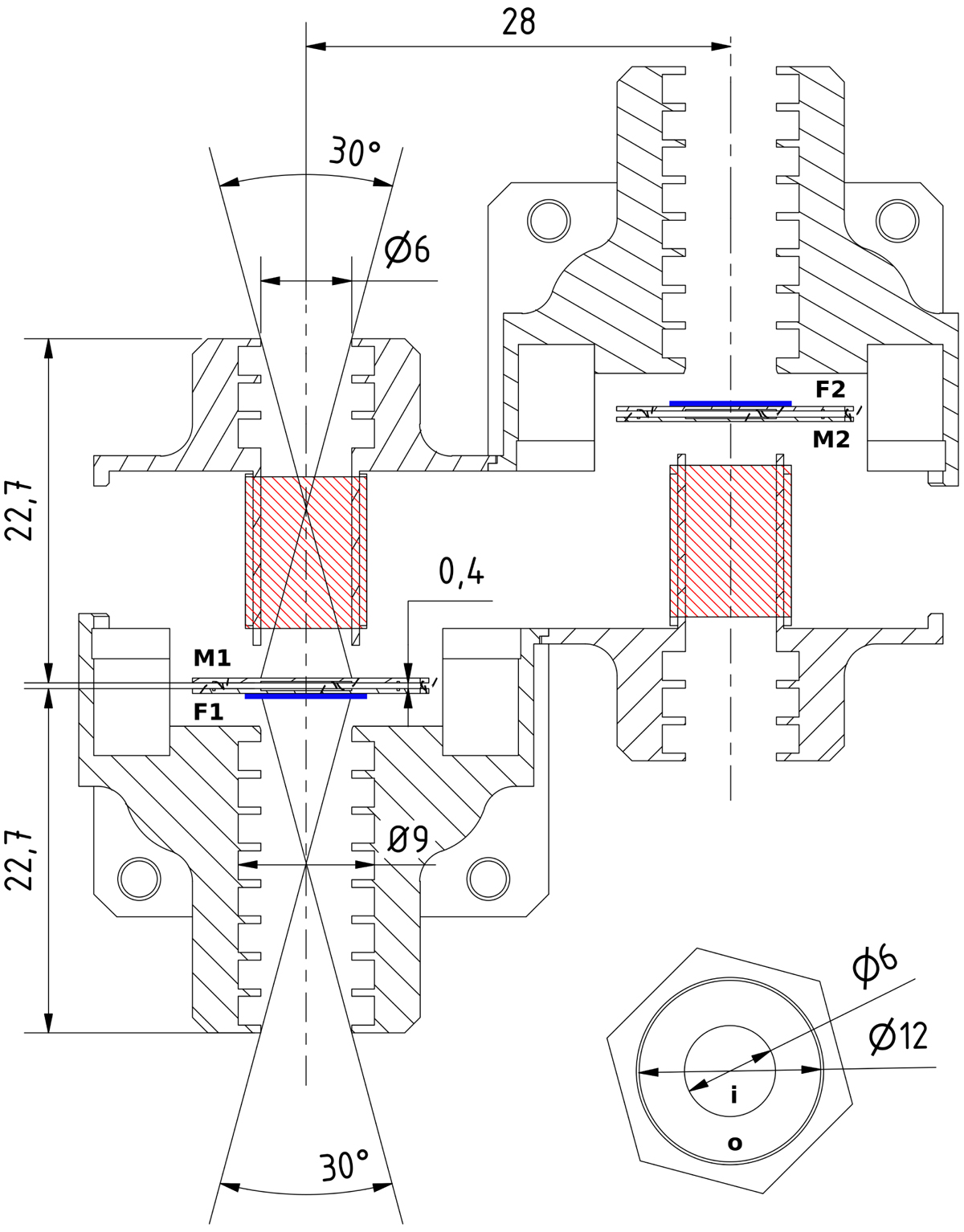

Fig. 15.
Horizontal cut of the EPT sensor with distances in mm. Red is the magnetic field perpendicular to the drawing, blue indicates where the 5 μm polyimide layer is located. The detectors are named M1, F1, M2, and F2 (for magnet and foil) and their inner and outer segments are denoted by i and o, respectively: r.g. M2i.
