Fig. 10.

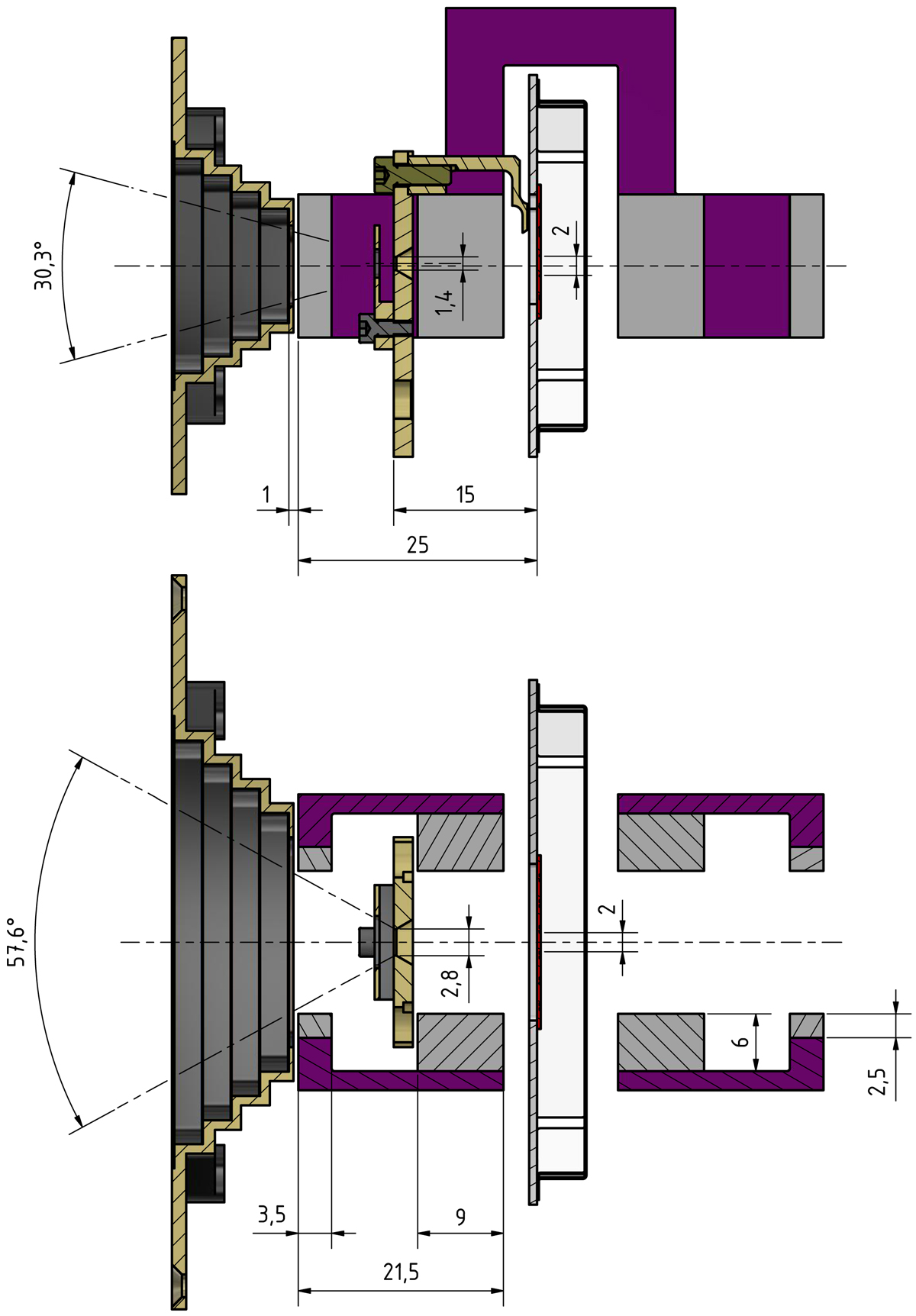

CAD view of the optically relevant items of the MAGNET channel sensor head. Top: side view. Bottom: top view. Details of the geometries in Fig. 8 are shown. In the INTEGRAL channel the magnets are not present and the pinhole is installed 0.25 mm lower. The colour scheme is the same as in Figs. 8 and 9.
