Planck 2018 results
Free Access

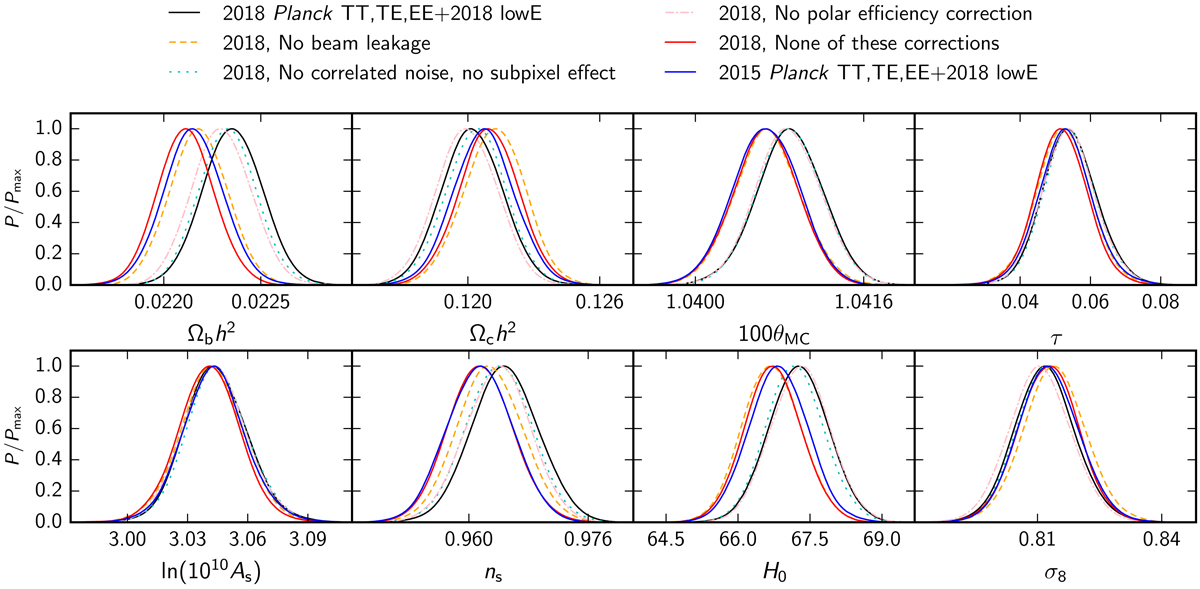

Fig. 8.


Impact of corrections for systematic effects on 2018 marginalized ΛCDM parameters from Planck TT,TE,EE+lowE. The plot shows the baseline results (black solid line), and the baseline result excluding corrections for various effects: beam leakage (dashed orange); polarization efficiencies (dot-dashed pink); and subpixel effects and correlated noise (dotted cyan). The impact of not including any of these corrections is shown in solid blue, and agree fairly well with the 2015 results if the 2015 low- polarization likelihood is replaced with 2018 lowE likelihood (2015 Planck TT,TE,EE+2018 lowE). This shows that corrections for polarization systematics account for most of the small changes between the 2015 and 2018 results that are not caused by the change in optical depth.
