Planck 2018 results
Free Access

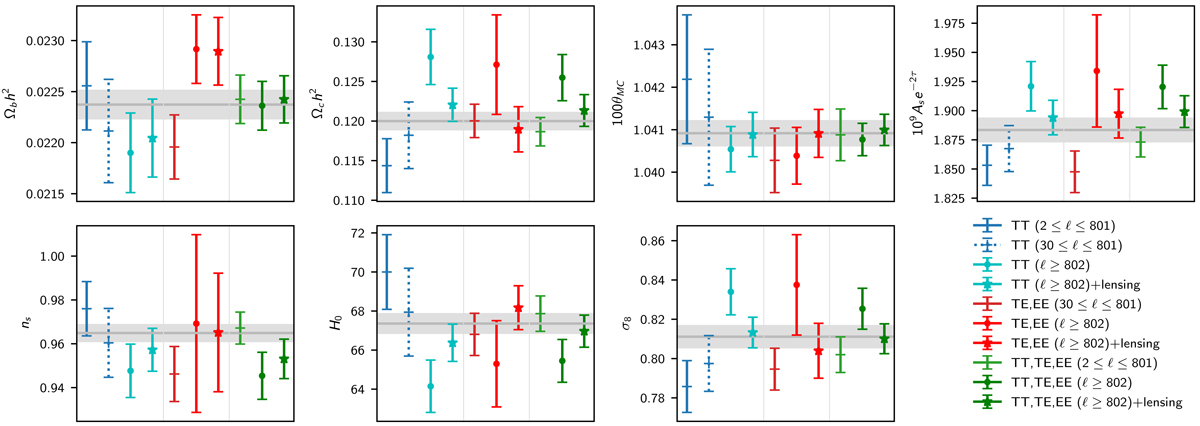

Fig. 22.


Base-ΛCDM 68% marginalized parameter constraints for various combinations of power spectrum ranges (all using plik_lite and also including low- polarization “lowE”). Points marked with a cross are from 2 ≤  ≤ 801, while points marked with a circle are from  ≥ 802. Dotted errors are the result from 30 ≤  ≤ 801, without the Commander large-scale temperature likelihood, showing that  <  30 pulls the low-multipole parameters further from the joint result. Points marked with a star are from  ≥ 802 combined with the lensing likelihood, showing that constraining the lensing amplitude pulls all the results from high multipoles towards better consistency with the results from lower multipoles. The grey horizontal band shows the combined 68% constraint from Planck TT,TE,EE+lowE+lensing.
