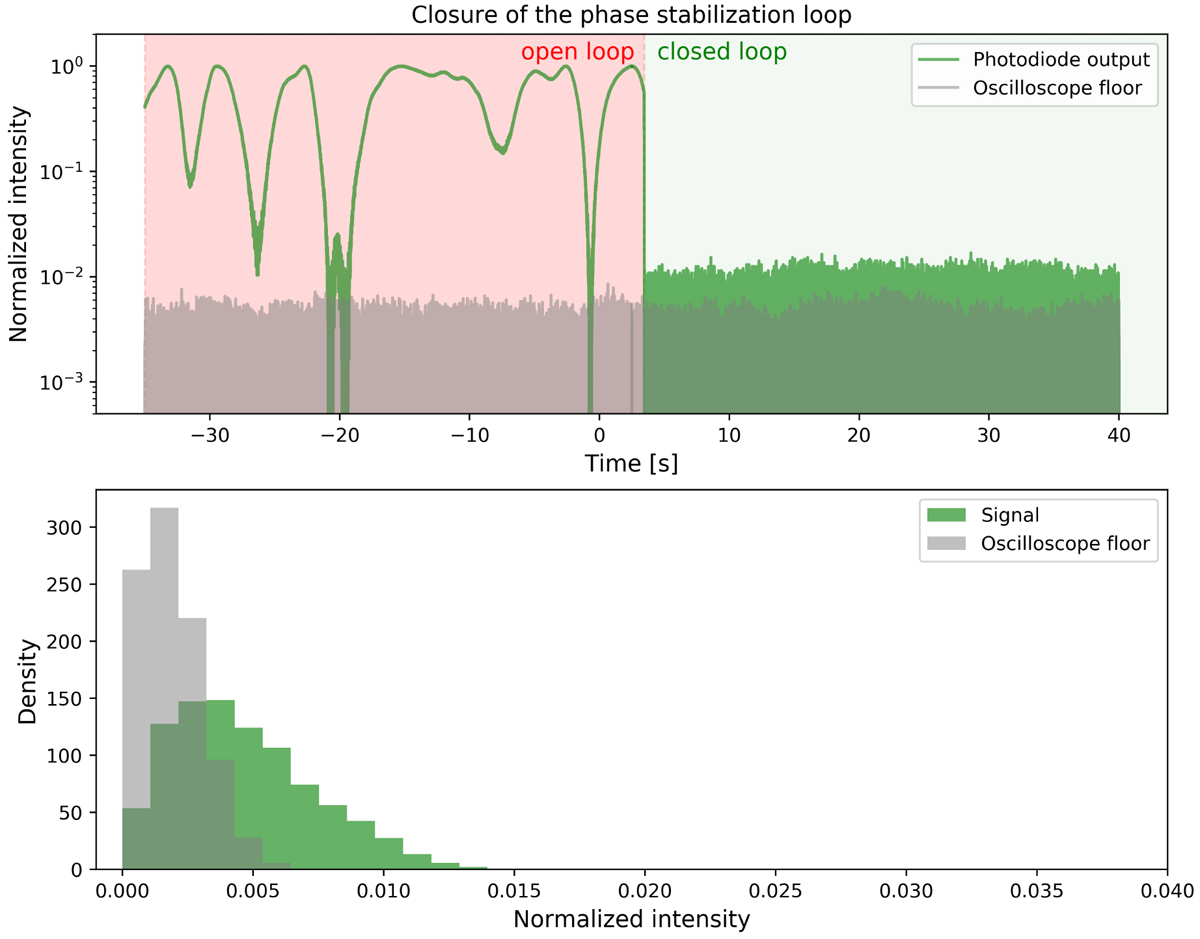

Fig. 3.

Phase stabilization scheme. Top: open-loop is highlighted in red, closed-loop in green. The photodiode output signal (green line) is just above the oscilloscope dark current (gray), which limits the effective contrast of the null. Bottom: histogram of the photodiode output is shown. Asymmetric shape of the photodiode output is typical of a null output.
