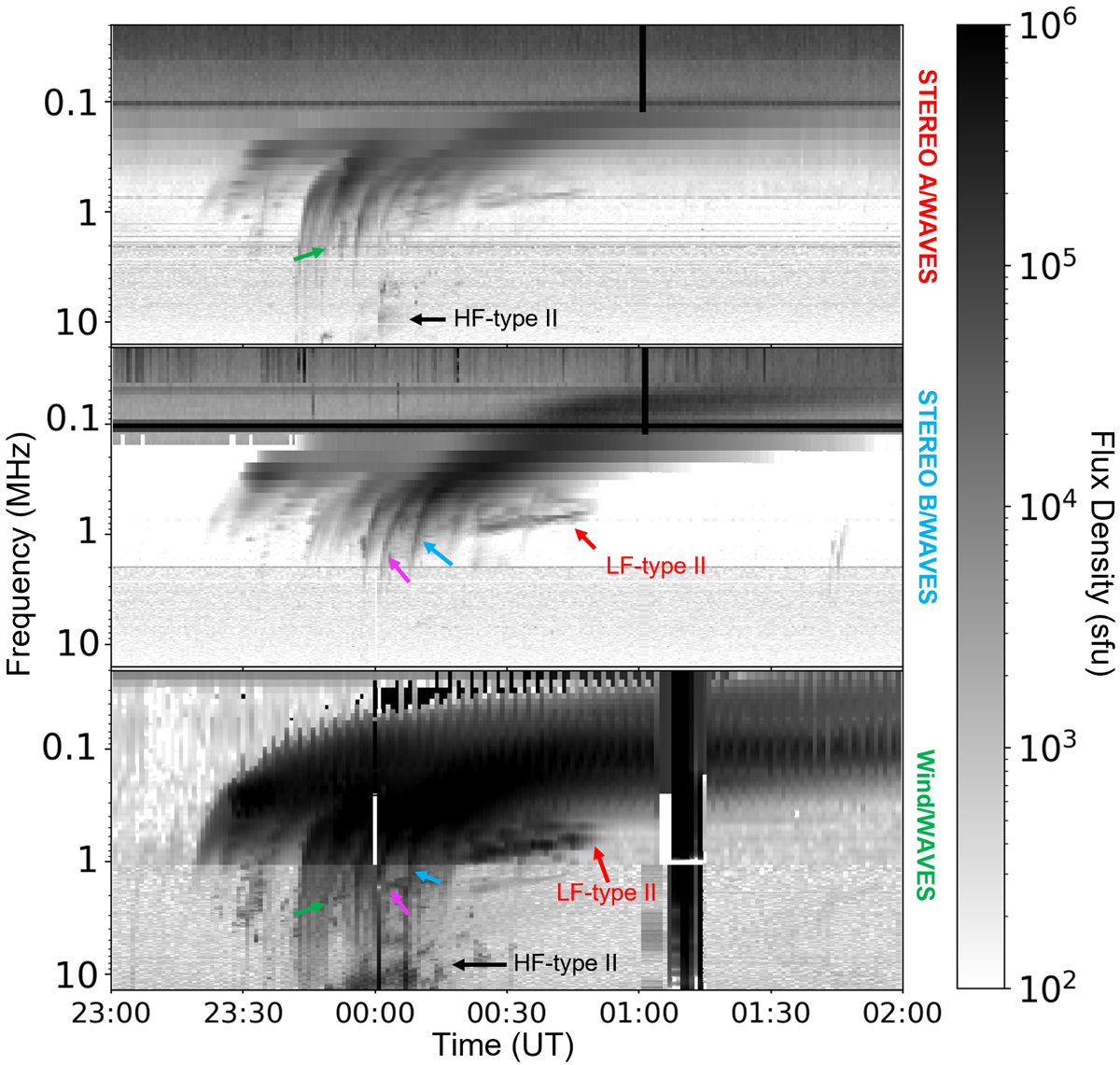

Fig. 6.

Calibrated dynamic radio spectra (solar flux units, i.e. sfu) observed by the Wind/WAVES, STEREO A/WAVES, and STEREO B/WAVES show the radio event associated with the September 27/28 event flare/CME. The LF-type II (indicated by the red arrow) burst observed by all three spacecraft, shows fundamental and second harmonic emission lanes. The HF-type II burst which is indicated by the black arrow was best observed by Wind/WAVES. The flare impulsive (FI) type III group (marked by the green arrow) and the type III associated with the flare decay (FD and FD*) phase are indicated by the blue and pink arrows, respectively.
