Fig. 7.

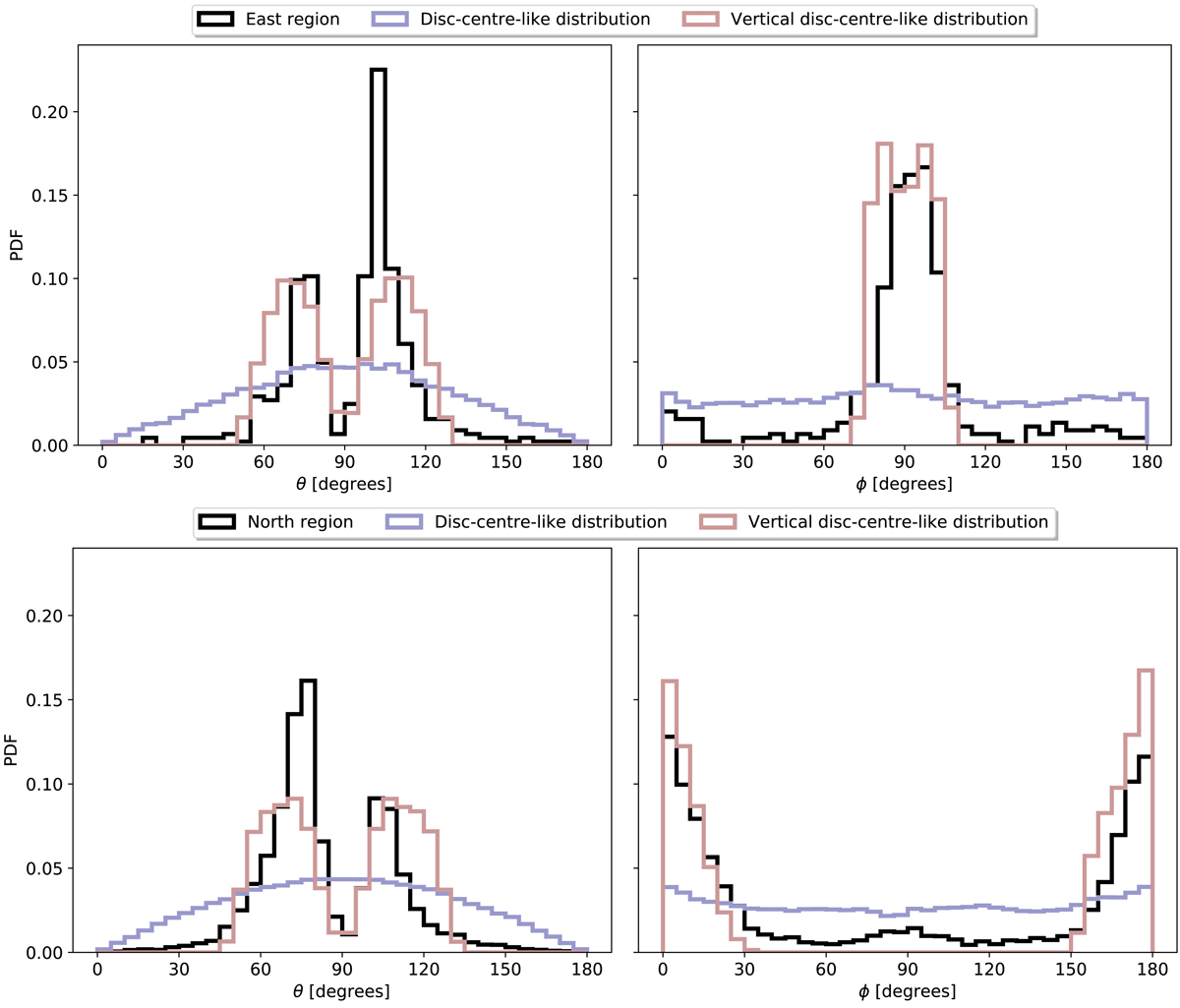

Limb datasets LOS magnetic field orientation. In solid black and from left to right: PDFs of the LOS magnetic field inclination and azimuth of the east region data set (top row) and north one (bottom row). The observed disc centre magnetic field topology is shown in blue, as it would be seen at limb regions when taking into account geometrical effects. A subset (vertical fields) of the observed disc centre magnetic field topology is shown in red.
