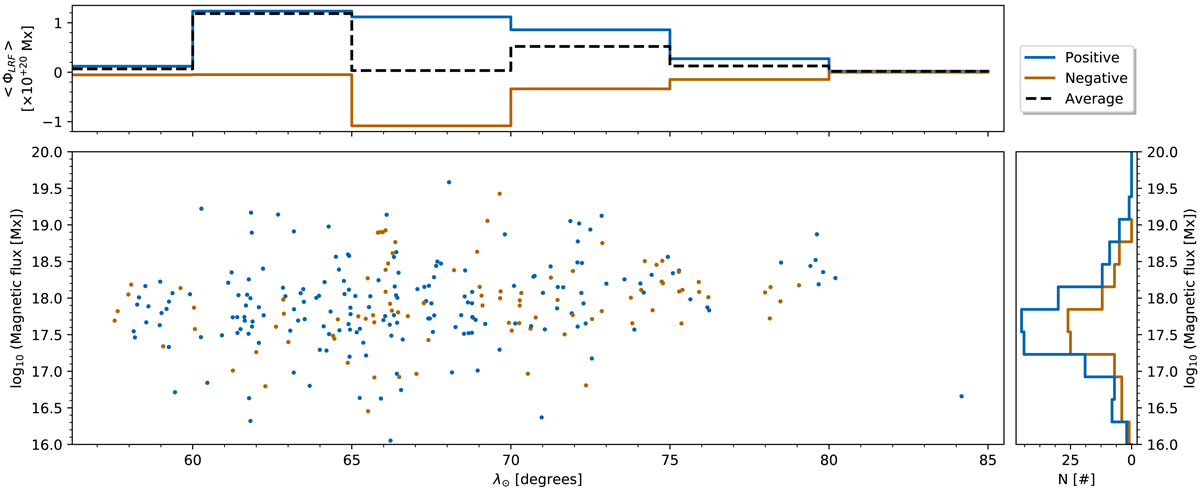

Fig. 10.

Local-reference-frame magnetic flux distribution depending on the heliospheric latitude (bottom-left panel). Blue colour stands for positive flux (outgoing the solar surface) and brown for negatives values. Right lower panel: LRF histograms. Top panel: averaged positive, negative, and total LRF flux (ΦLRF) as a function of the solar latitude. The colour code is preserved for the sake of clarity.
