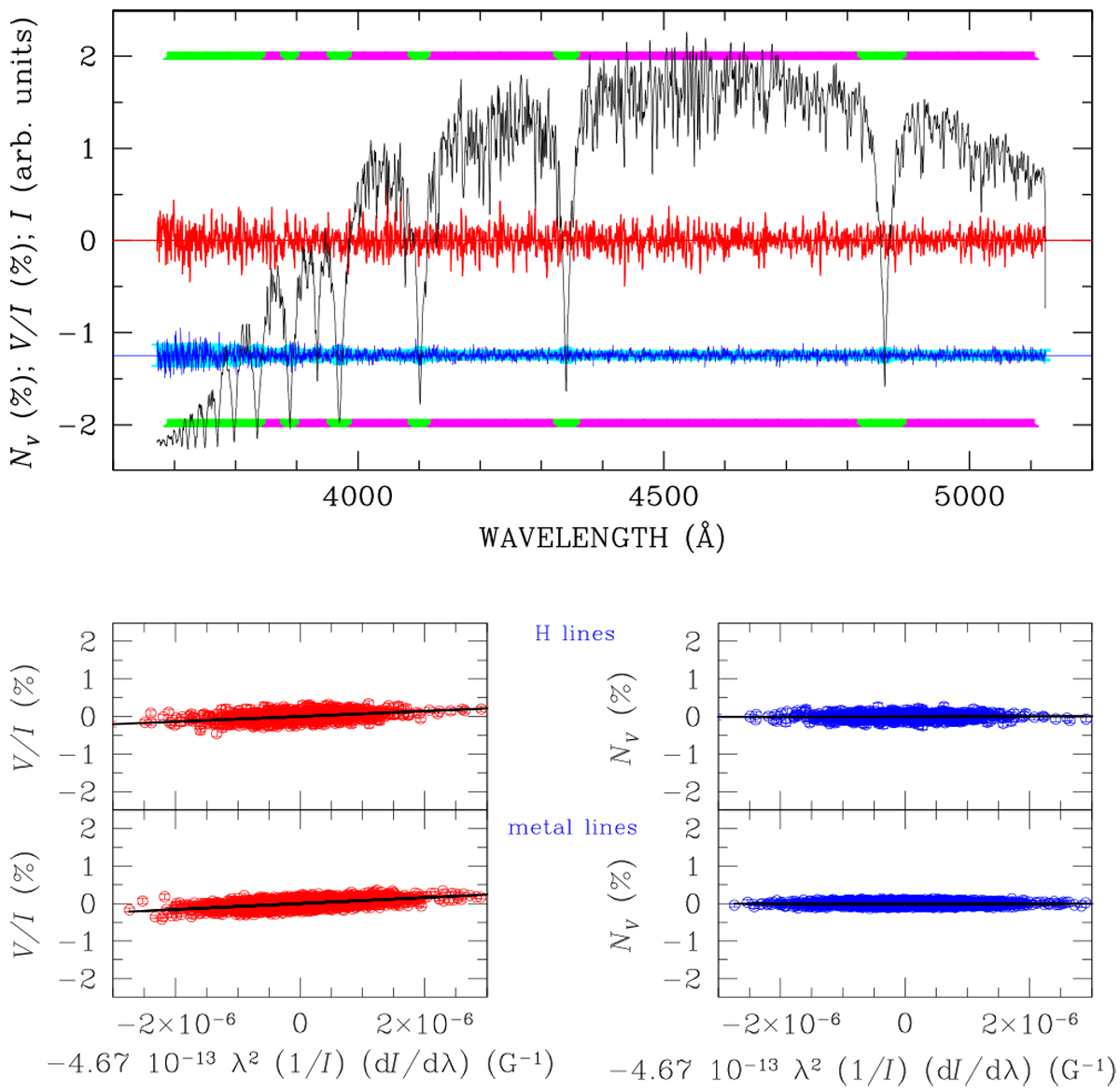

Fig. 1

FORS2 observations of the magnetic reference Ap star HD 188041. In the upper panel, the black solid line shows the Stokes I spectrum (uncorrected for the transmission function of the atmosphere + telescope and instrument optics); the red solid line shows the reduced Stokes V spectrum, PV = V∕I (in % units), and the blue solid line is the null profile offset by − 1.25% for display purposes. The scattering of the null profile about zero is consistent with the 1σ photon-noise uncertainties, which are also shown centred around − 1.25% and appear as a light blue background to the null profile. Spectral regions highlighted by green bars (at the top and bottom of the panel) have been used to determine the ⟨Bz ⟩ value from H Balmer lines, while the magenta bars highlight the spectral regions used to estimate the magnetic field from He and metal lines. Four bottom panels: best-fit obtained by minimising the χ2 expression ofEq. (1) using the PV spectra (left panels) and the NV spectra (right panels) for H Balmer lines (upper panels) and metal lines (lower panels).
