Fig. B.1

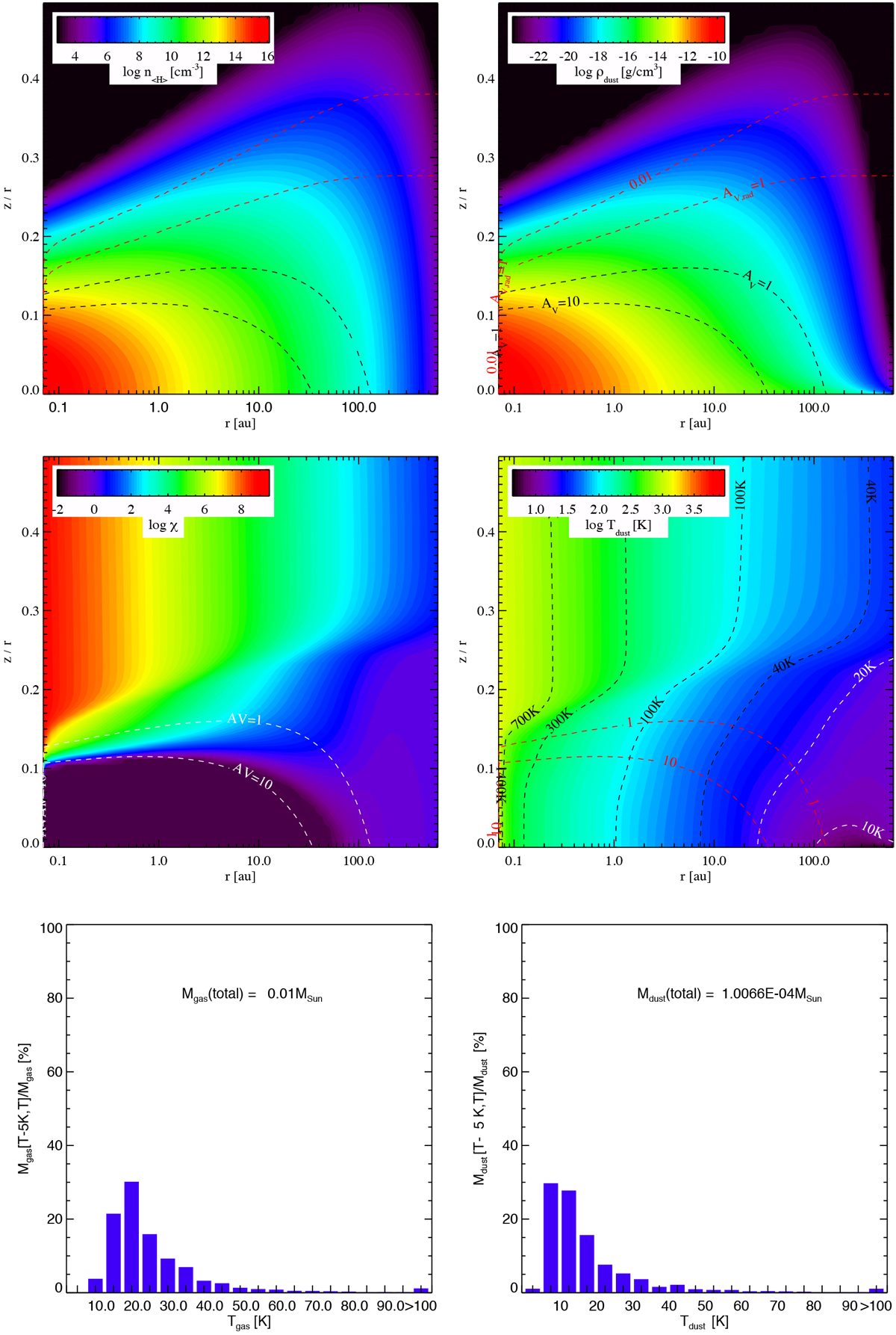

Top two rows: disk distribution of various quantities: disk gas number density (nH), dust mass density ρdust, UV field strength in units of χ (χ = 1 is the average local interstellar medium radiation field) over-plotted by contours showing the dust extinction in the optical, and the dust temperature. Lower panels: gas and dust temperature distribution in the disk.
