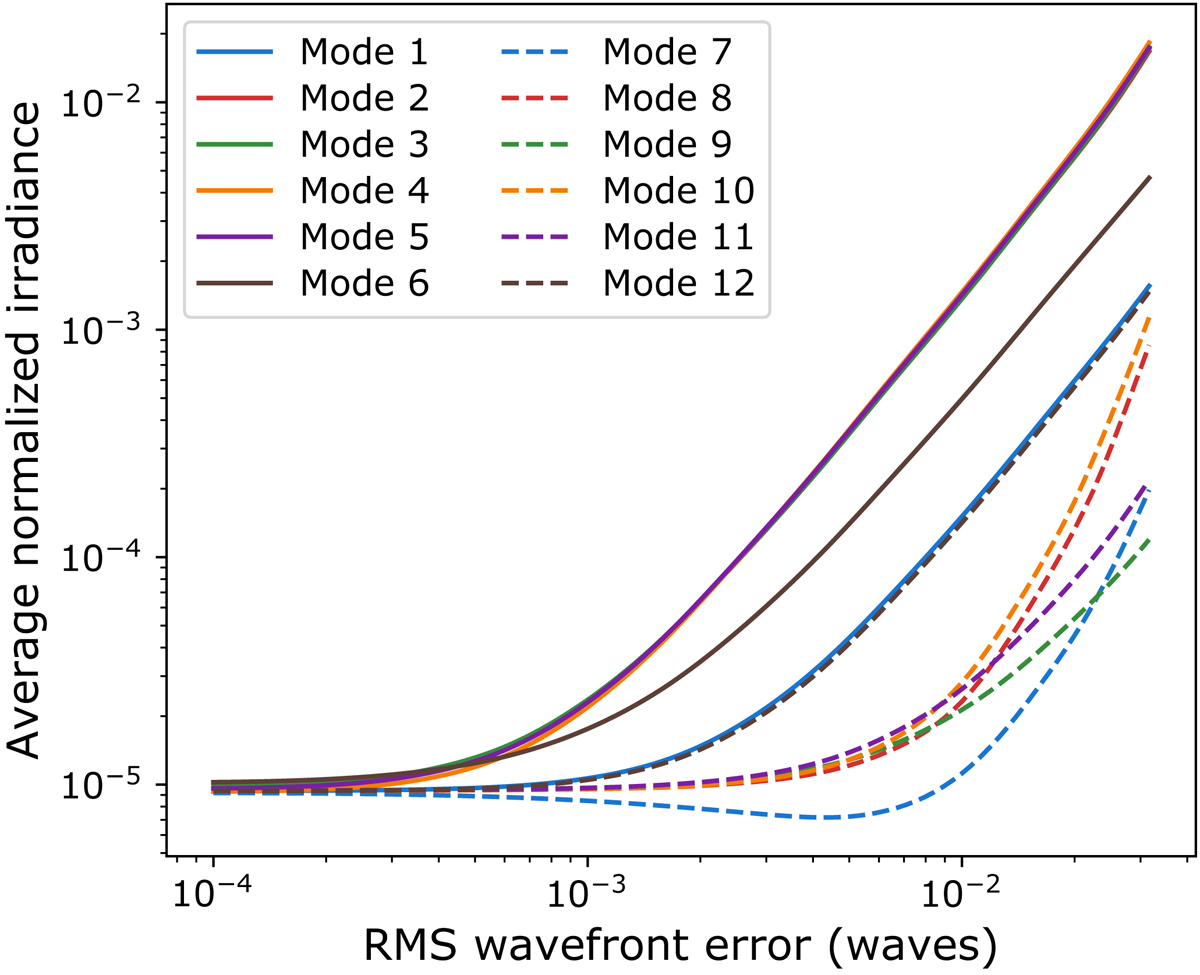

Average normalized irradiance for each of the modes in Fig. 14. The normalized irradiance is averaged over all fibers in the first ring of microlenses, and over the full 10% spectral bandwidth. These curves can yield constraints on the post-AO residual variance for each of the shown modes. Higher-order modes in this expansion generally have less response and do not have to be controller as well as low-order modes.
