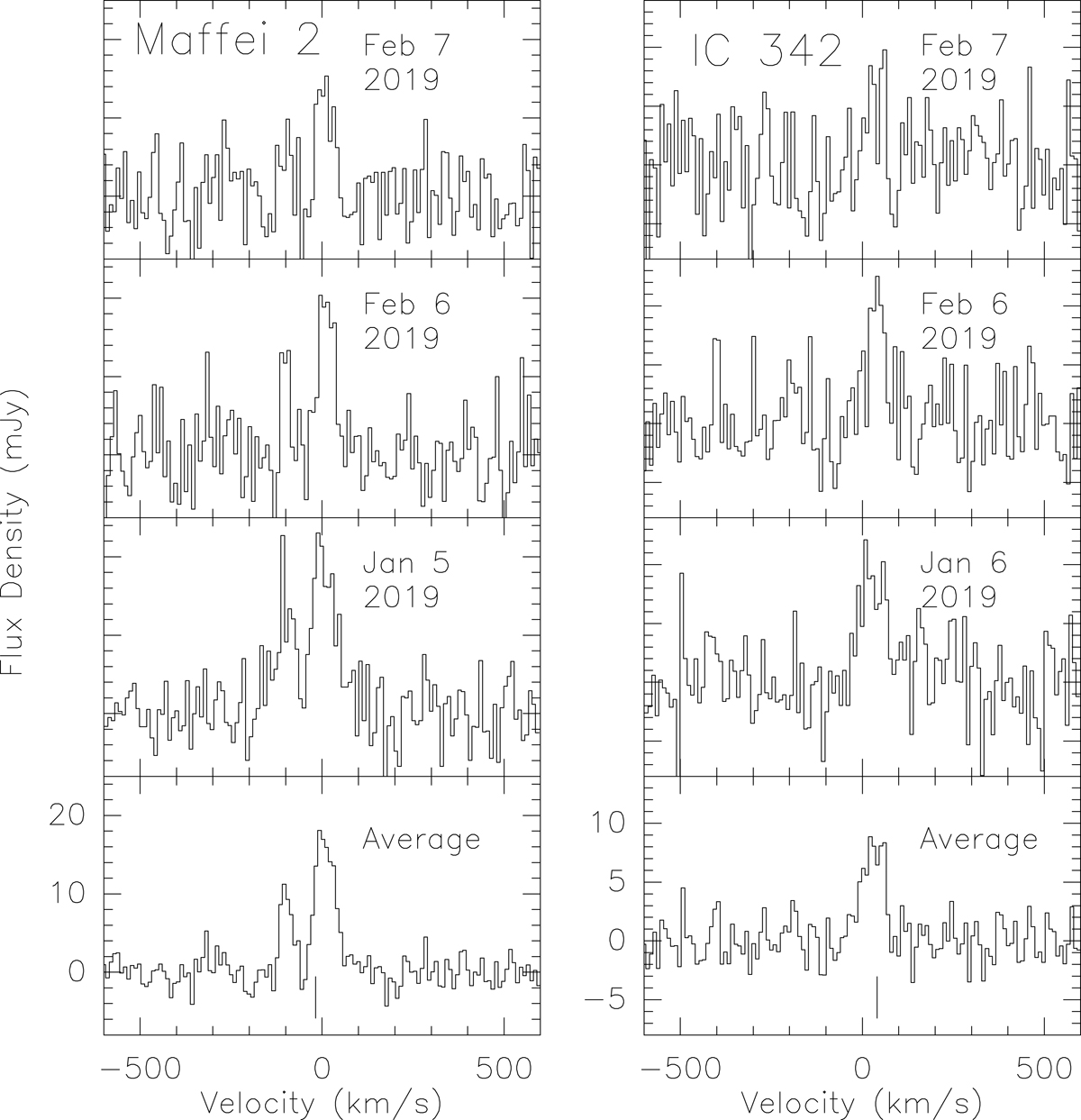

Fig. 2.


4−1 → 30 E methanol spectra from Maffei 2 (left) and IC 342 (right). Spectra from a given source are all presented with the same amplitude and velocity scale. The adopted rest frequency is 36.169261 GHz, the coordinates are αJ2000 = 2h41m552, δJ2000 = 59° 36′ 12″ (Maffei 2) and αJ2000 = 3h46m486, δJ2000 = 68° 05′ 46″ (IC 342). The velocity scale is the local standard of rest. The spectra were smoothed by averaging 256 contiguous channels to a channel spacing of 9.7 km s−1. The average spectrum was obtained, weighting individual subscans with the inverse square of their system temperature. The systemic local standard of rest velocity for Maffei 2 is –14 ± 5 km s−1 and VHEL = VLSR − 3.1 km s−1. For IC 342, the corresponding values are +35 ± 3 km s−1 and VHEL = VLSR − 3.9 km s−1. Vertical lines indicating the systemic velocities are included in the lower parts of the averaged spectra.
