Fig. 1.

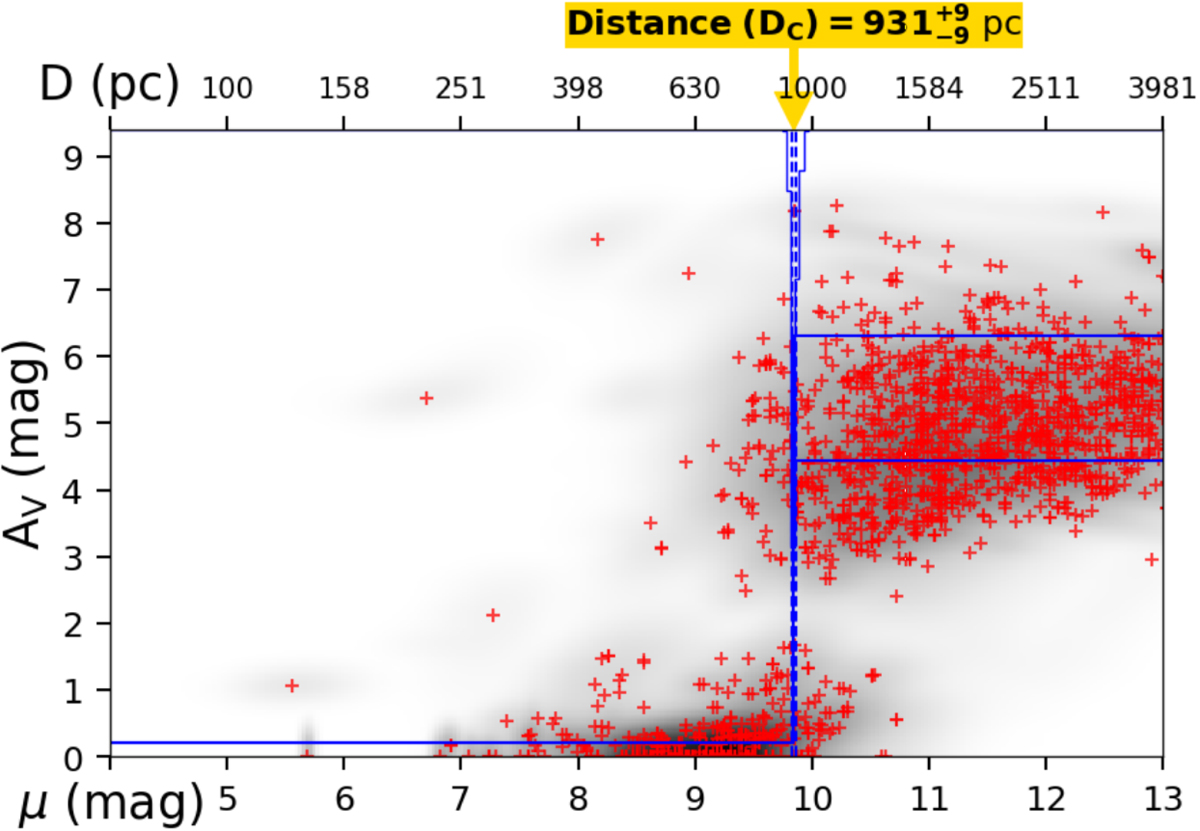

Our line-of-sight extinction model as a function of distance towards the Vela C cloud (l, b = 264.7 ° ,1.4°). The background grayscale shows the probabilistic distance and extinction estimates for all the stars used in the fit, with the most probable distance and extinction to every star marked via a red cross. The blue step function shows the typical extinction profile inferred for the sightline. The median foreground extinction prior to the cloud distance DC (at distance modulus μC) is shown as a blue horizontal line. The range of estimated distances to the cloud is shown as an inverted blue histogram, with the median cloud distance and the corresponding 16th/84th percentiles marked with solid and dashed blue vertical lines, respectively. Beyond the cloud distance, the bottom and top blue lines show the 16th and 84th percentile of the Planck-based extinction towards the stars. The distance uncertainties do not include systematic uncertainties, which we estimate to be roughly 5%.
