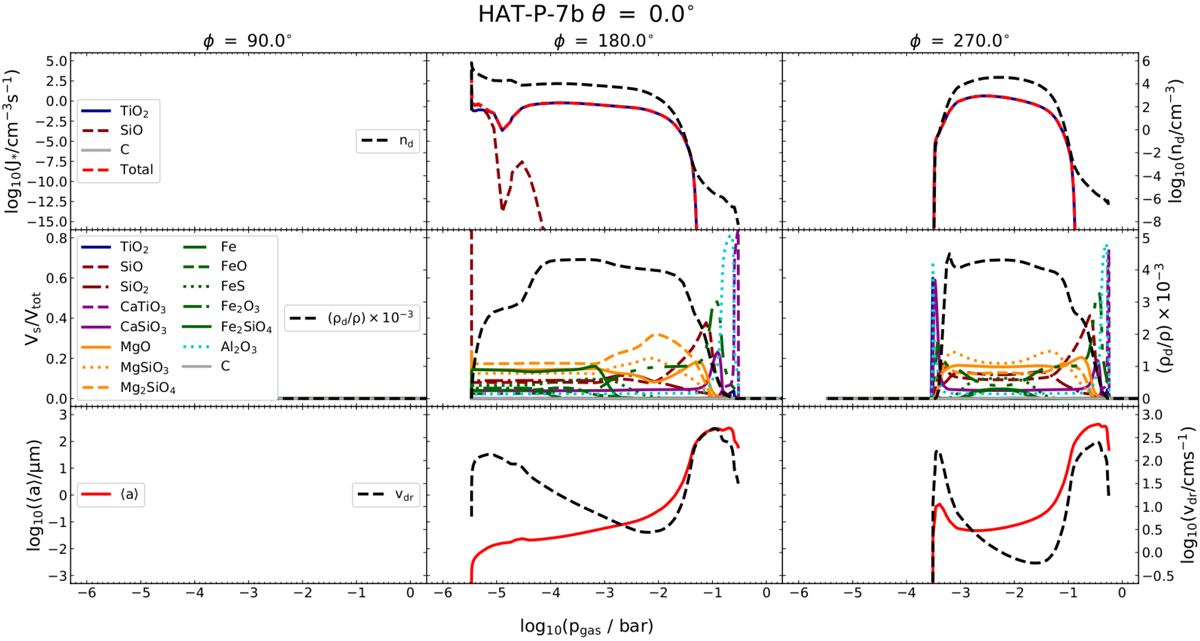

Fig. 5

Cloud properties at the evening terminator, anti-stellar point, and morning terminator (ϕ = 90deg, 180deg, 270deg). Top: left axis shows the individual, Ji (i = TiO2, SiO, C), and the total nucleation rates J*=∑iJi=(cm−3s−1) (cut-off at 10−15). Right axis (black dashed line) is the number density of cloud particles, nd (cm−3). Middle: volume fractions, Vs∕Vtot (s = TiO2[s], Mg2 SiO4[s], MgSiO3[s], MgO[s], SiO[s], SiO2[s], Fe[s], FeO[s], FeS[s], Fe2 O3[s], Fe2 SiO4[s], Al2 O3[s], CaTiO3[s], CaSiO3[s], C[s]), of the materials that grow the bulk of the cloud particles. Bottom: left axis (red solid line) is the average grain size, ⟨a⟩ (μm). Right axis (black dashed line) is the vertical drift velocity, vdr (cm s−1) of the cloud particle of size ⟨a⟩.
