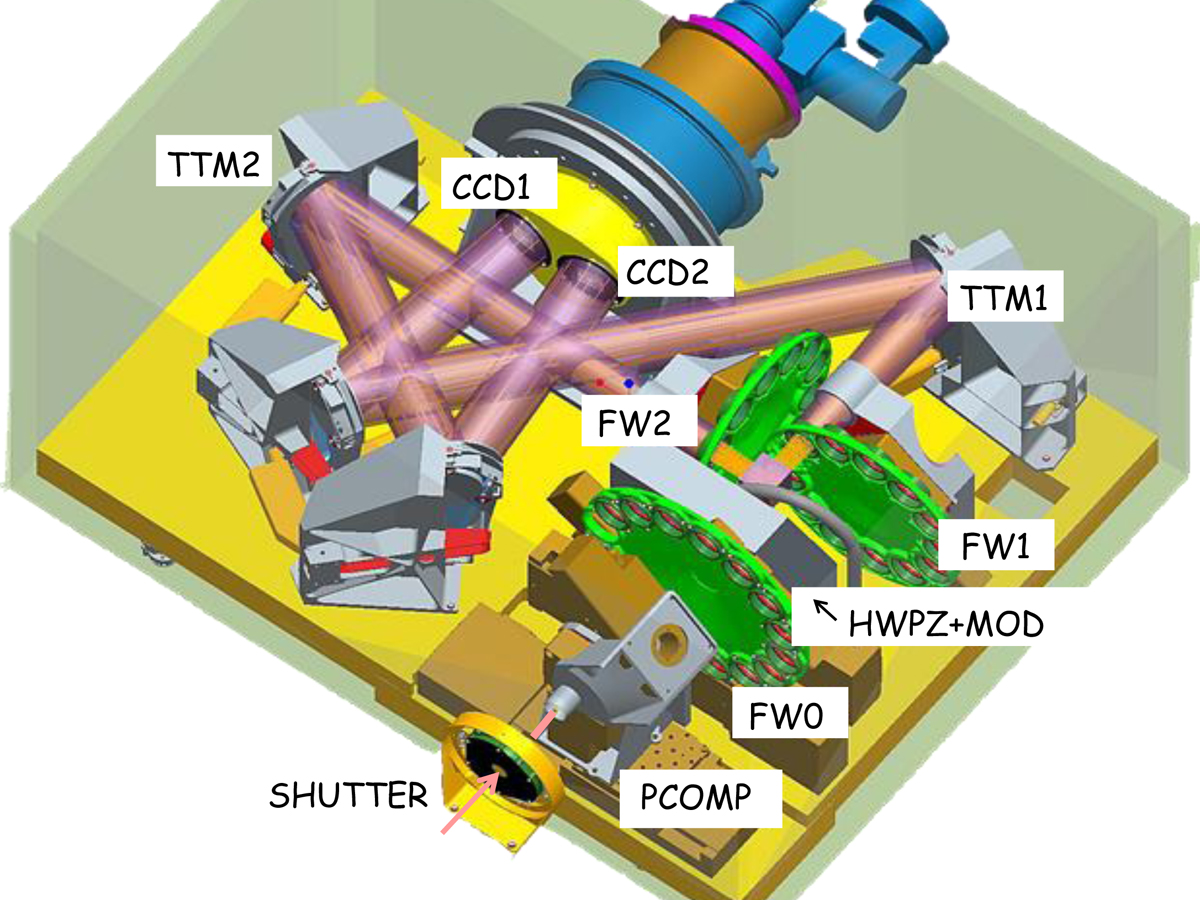

Fig. 14.
Opto-mechanical design of ZIMPOL with marked key components. PCOMP: polarization compensator, FW0: filter wheel in common path, HWPZ: ZIMPOL half wave plate, MOD: FLC modulator, FW1 and FW2 filter wheels in arm1 and arm2, TTM1 and TTM2: tip tilt mirrors, CCD1 and CCD2: detectors.
