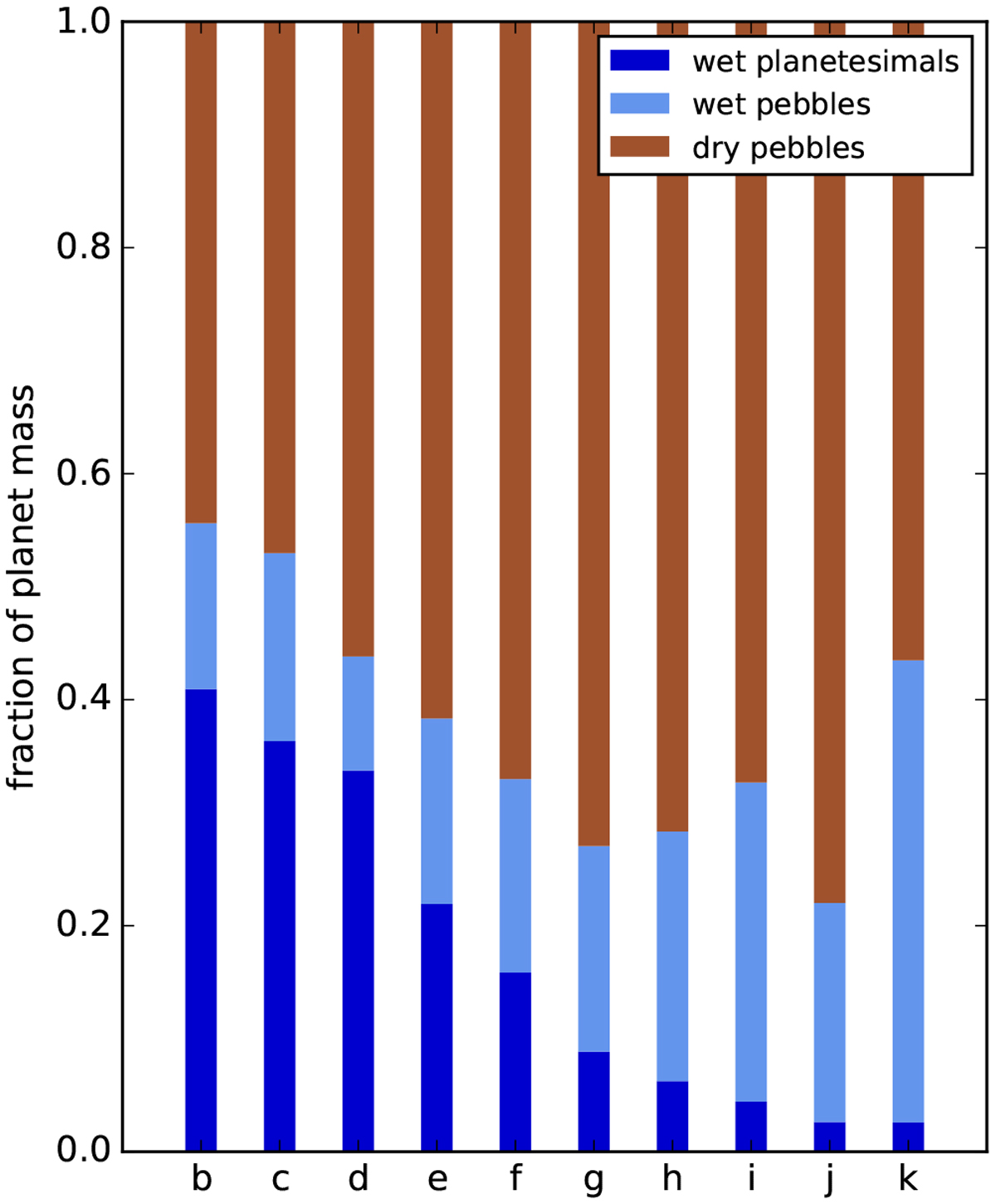

Fig. 8

Stacked bar chart of planet constituents for each planet of the fiducial model run. Dark blue barscorrespond to planetesimals (which are formed outside the snowline and therefore contain 50% water); light blue bars denote wet pebbles (also 50% water) accreted outside the snowline; brown bars depict dry pebbles accreted interior to the snowline. The “V-shape” in the water fraction with planet order (right panel of Fig. 7) is visible in this figure as well.
