Fig. 8.

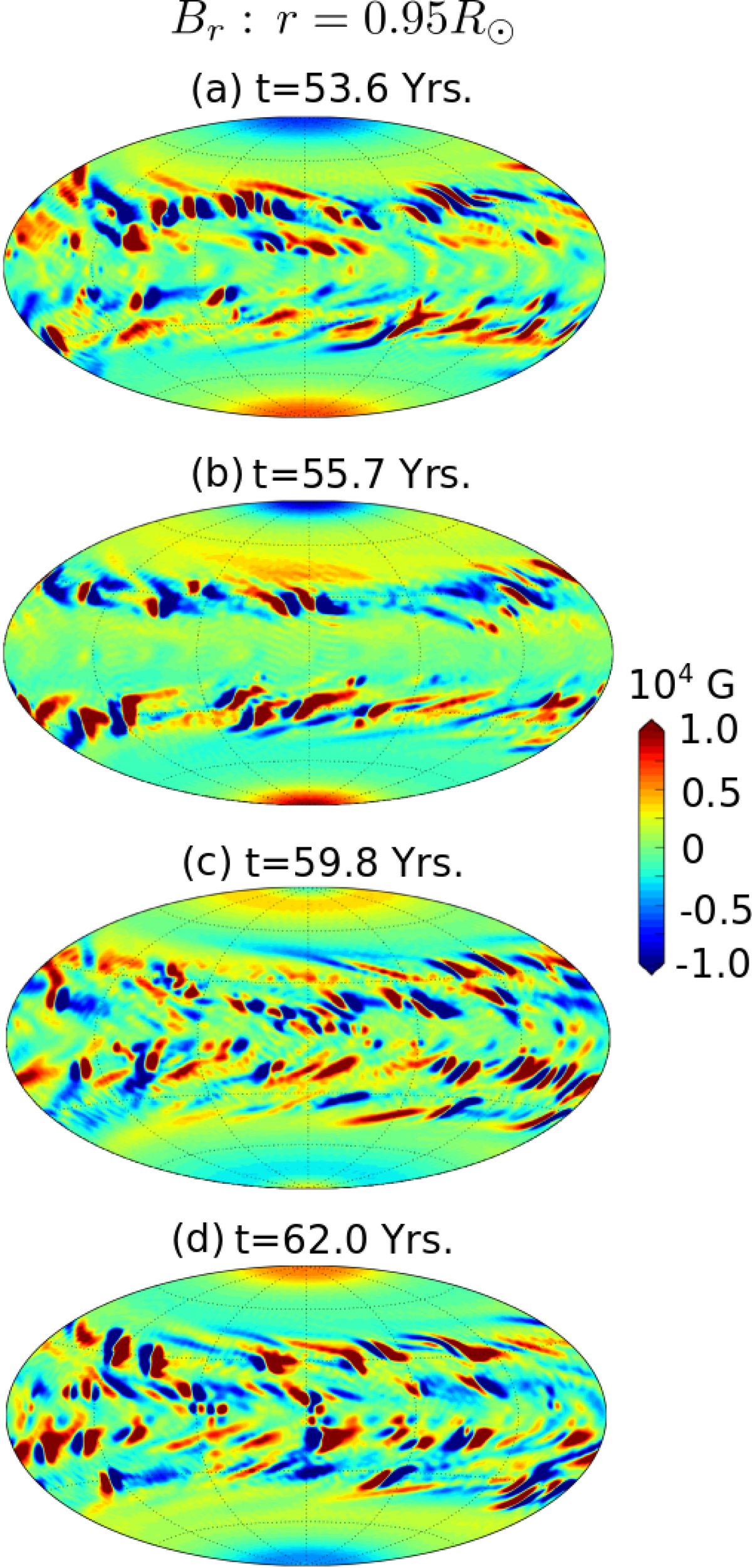

Snapshots of the radial magnetic field (Br) at the surface showing tilted BMRs and large-scale polar magnetic field (panel a) before reversals, (panel b) during sunspot minimum, (panel c) during sunspot maximum and field reversals, and (panel d) after the polarity reversals through the BL mechanism.
