Fig. 3

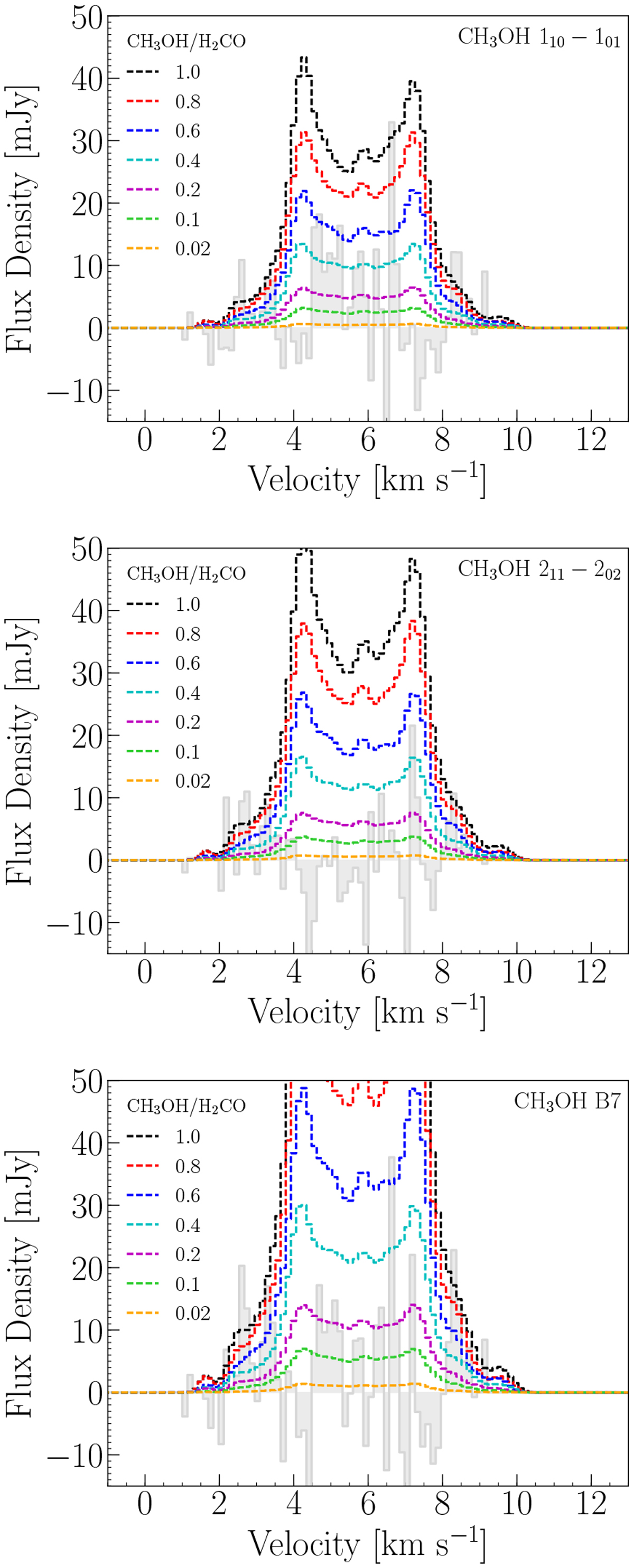

Model CH3OH spectra at different methanol-to-formaldehyde abundance ratios (colored dashed lines) compared to the ALMA CH3 OH non-detections after Keplerian masking (gray) in the HD 163296 disk. Given the sensitivity levels achieved, the ALMA observations should be sensitive to the presence of methanol in the disk for CH3 OH/H2CO ≳ 0.2 based on the stacked band seven lines. Top panel: CH3OH 110 –101 (A) line. Middle panel: CH3OH 211 –202 (A) line. Bottom panel: stacked band seven CH3OH lines.
