Fig. C.6

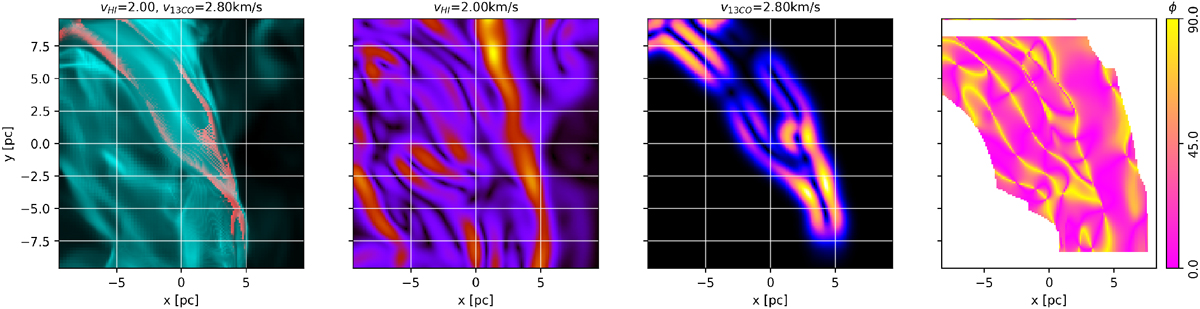

Intensity, intensity gradients, and relative orientation angle maps from the synthetic observations of a segment of the FRIGG simulation in the snapshot taken at t = 9.11 Myr. Left panel: synthetic HI (teal) and 13CO emission (red) in the velocity channels with the largest HOG correlation, as inferred from the values shown in Fig. C.5. Middle left panel: norm of the gradient of the HI intensity map in the indicated velocity channel. Middle right panel: norm of the gradient of the 13CO intensity map in the indicated velocity channel. Right panel: relative orientation angle ϕ, Eq. (1), between the gradients of the intensity maps shown in the left-hand-side panel.
