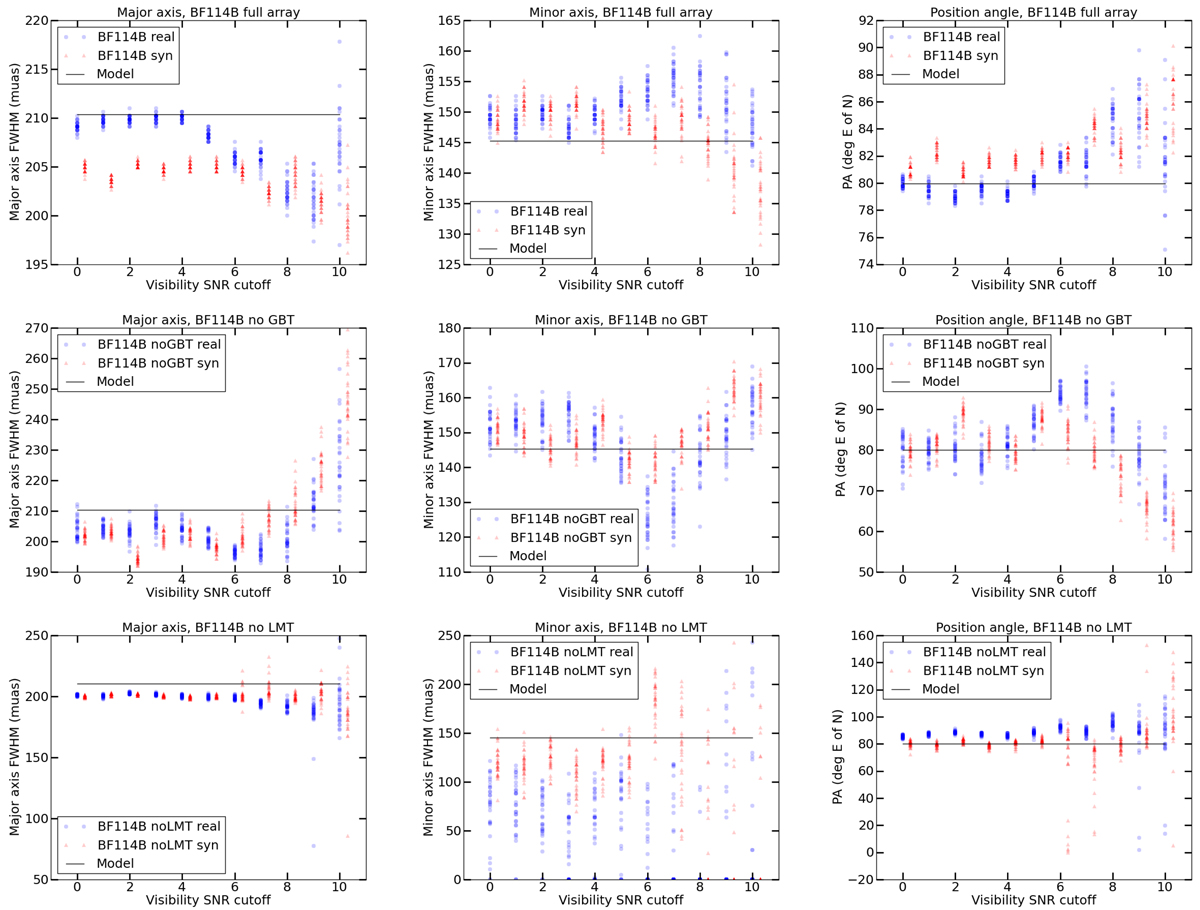

Fig. 5.

Raw model fitting results for the BF114B dataset and for the synthetic dataset with the same (u, v)-sampling, using different integral S/N cutoff values and different station selections. The fiducial model parameters used to generate the synthetic dataset with are indicated by the horizontal black lines. For each S/N cutoff value, 31 bootstrapping realizations were performed to obtain uncertainties on the fitted model parameter values. Each of the results from these realizations is plotted with a single symbol. From left to right columns: major axis, minor axis and position angle results. Top row: full array, middle row: without the GBT, bottom row: without the LMT.
