Fig. D.2

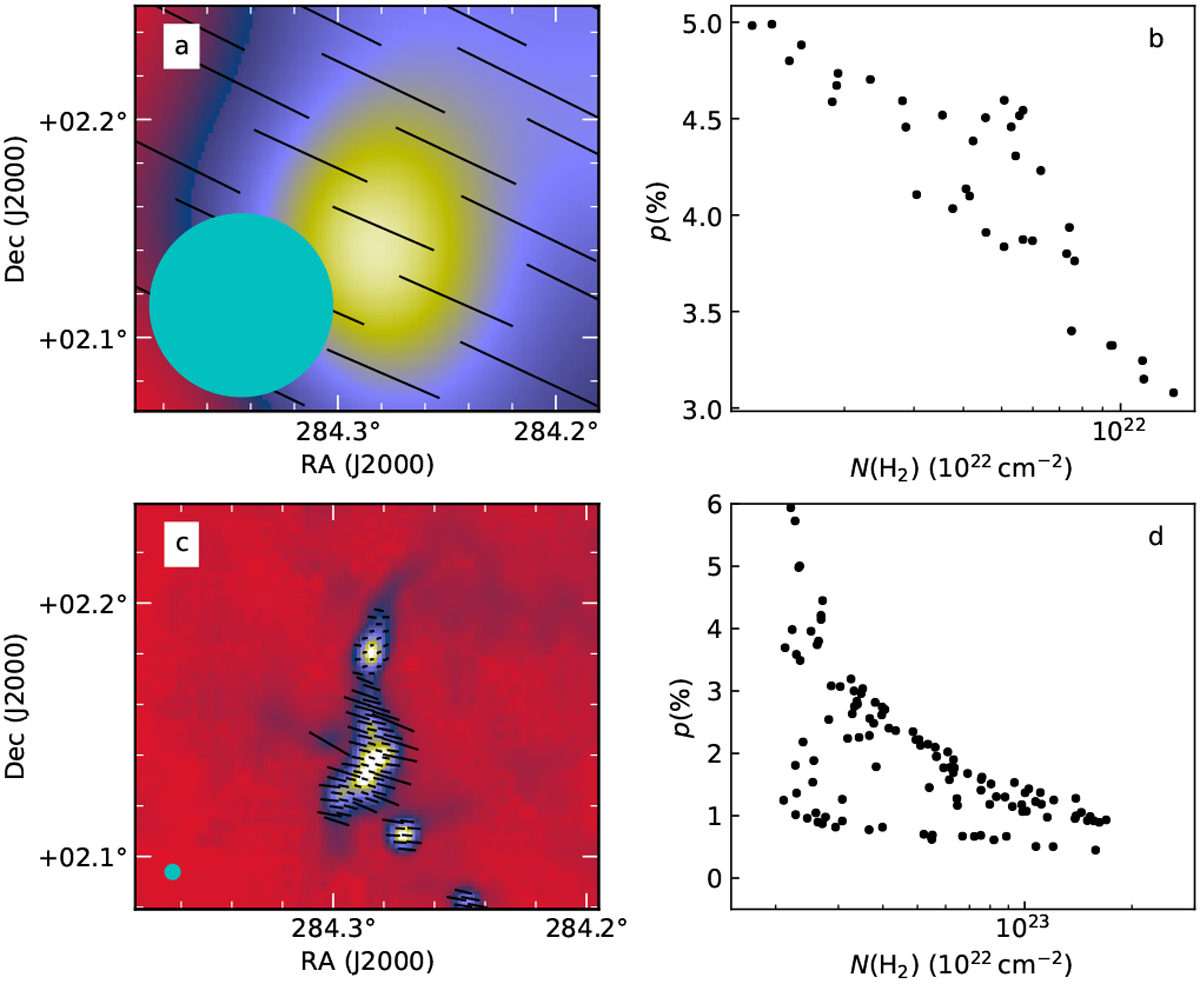

Model predictions for polarisation according to RAT grain alignment, assuming larger grain sizes. Thefigure is the same as Fig. 20 but the field orientation in the filament with n(H2) > 3 × 103 cm−3 is taken directly from POL-2 observations at 20′′ resolution.
