Fig. 8.

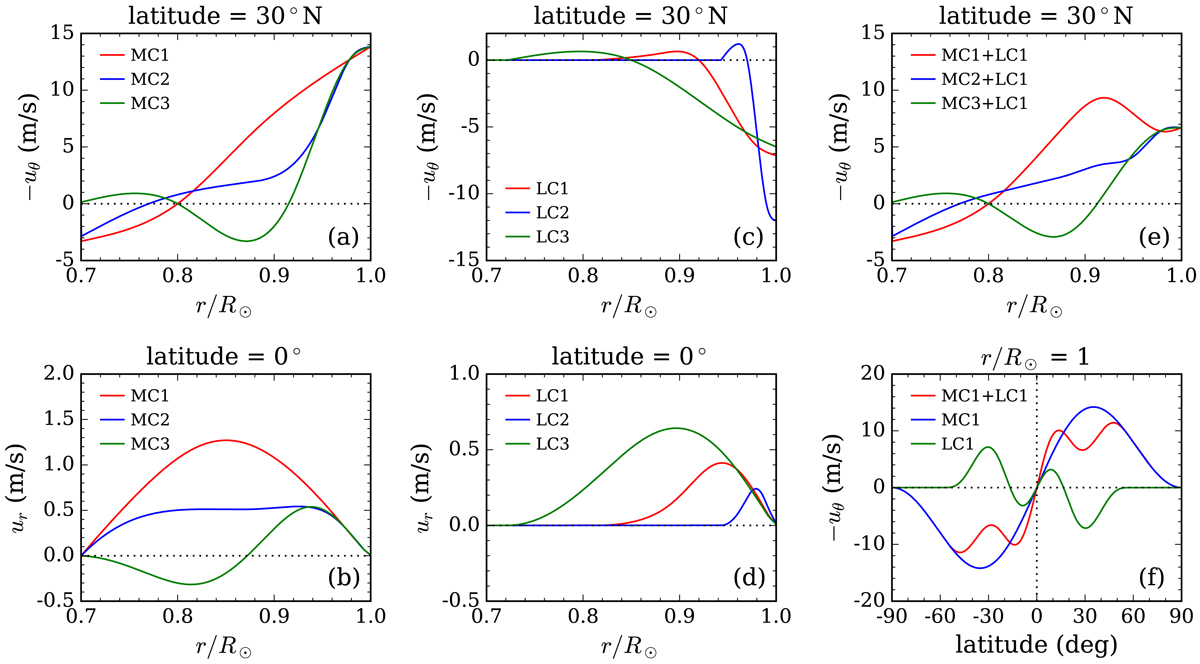

Latitudinal and radial profiles of flow models listed in Table 1. Panels a, b: vertical cuts through the uθ and ur of the MC models as a function of r, respectively. Panels c, d: vertical cuts through the uθ and ur of the LC models as a function of r, respectively. Panel e: vertical cuts through the uθ of the sum of MC models and model LC1 as a function of r. Panel f: horizontal cuts at the surface through the uθ of the sum of MC models and model LC1 as a function of latitude. We note that all the flow models in this work are antisymmetric about the equator.
