Fig. 9

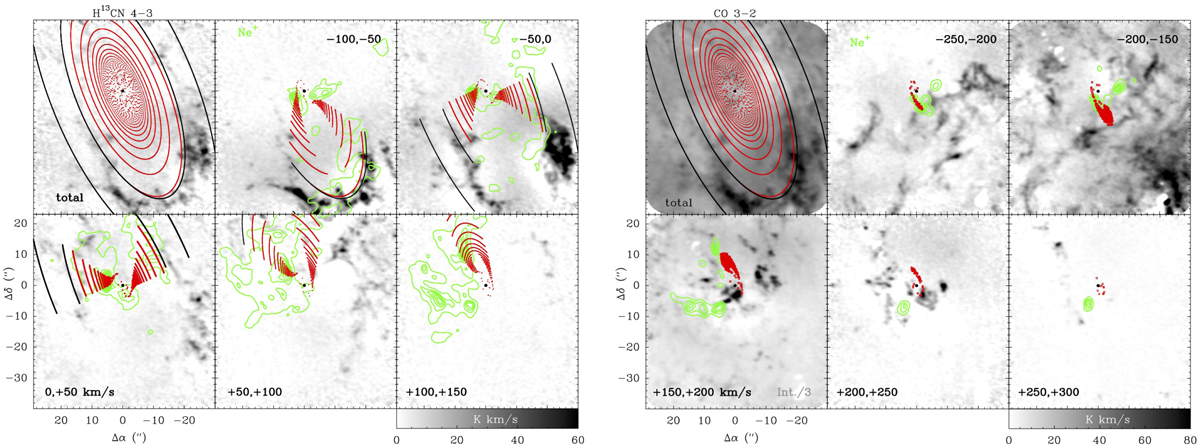

Modeled spiral orbits (red segments) over H13CN (J = 4–3) channel maps at typical CND velocities vLSR from −100 to +150 km s−1 (left) and over higher-velocity 12CO (J = 3–2) channel maps (right), both in steps of 50 km s−1. The spirals are nearly circular orbits (i = 66° and θ = 23°) with a small inward radial velocity component (a = −0.06 pc, see text) proposed by Irons et al. (2012) to explain the motion of the ionized gas (shown in green contours) across the northern arm and western arc. Black curves represent a CND model bounded by two rotating circular rings with inner and outer deprojected radii of 1.5 and 2.3 pc respectively. Sgr A* is displayed with a black dot.
