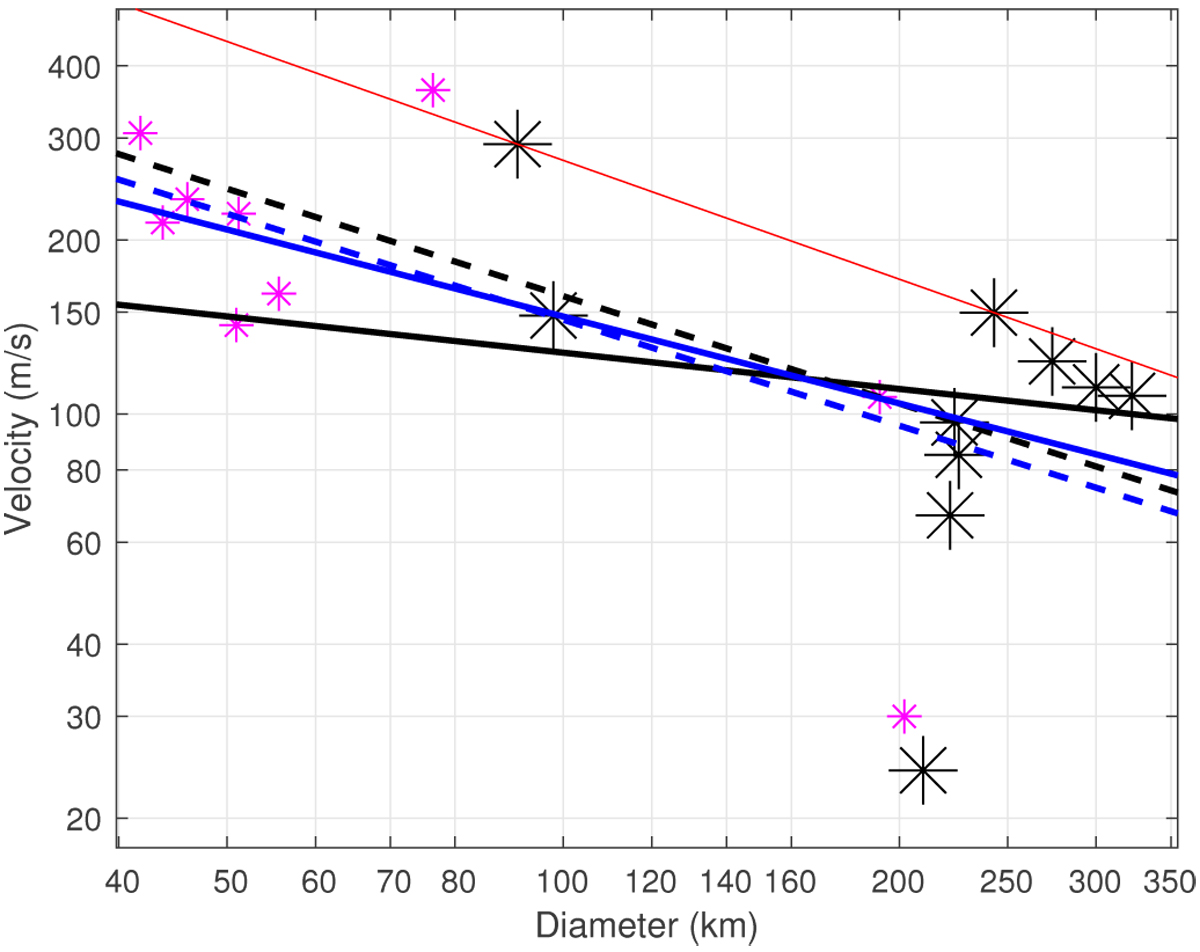

Fig. 4


Distribution of ejection velocities. The large black dots are confirmed Haumea family members (Table 6) and the magenta dots are candidate family members (Table 7). The dashed black line is a fit to all confirmed family members (γ = 0.62); the solid black line is a fit to the same data but excluding the minimum and maximum velocities (γ = 0.21). The red line is a limiting case of the confirmed family members (γ = 0.68). The dashed blue line is a fit to all confirmed and candidate family members (γ = 0.61) and the solid blue line a fit to the same data excluding minimum and maximum velocities (γ = 0.50).
