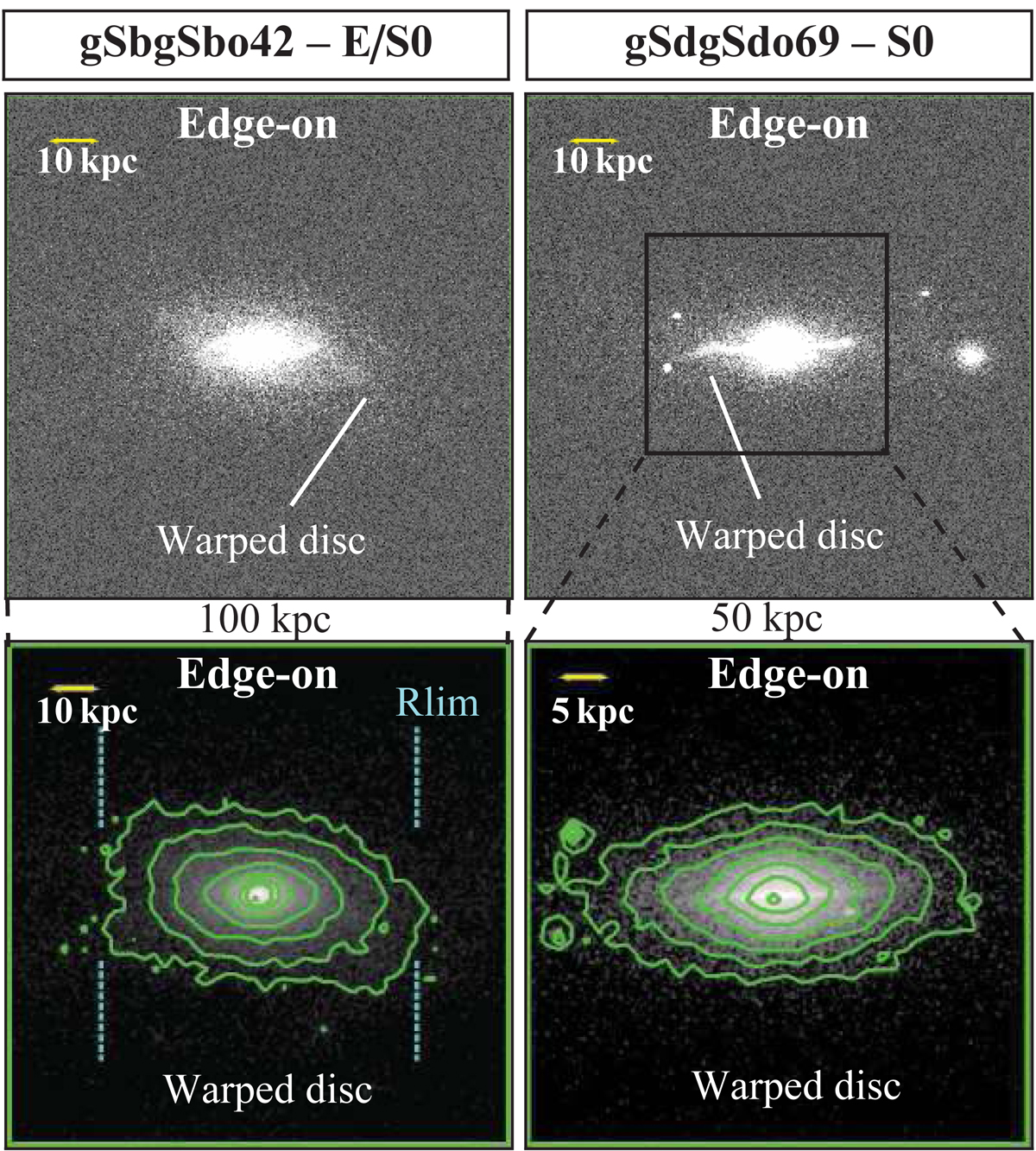

Edge-on images in the V band of two of the only three S0-like major-merger remnants found to have significant warped discs. The other one is gSbgSbo72, shown in Fig. 7. Top panels: original edge-on V-band images of the remnants, for a FoV of 100 × 100 kpc². Bottom panels: same images as in the top panels, but applying a Gaussian smoothing to the images with σ = 8 and 4 pixels respectively (equivalent to 2″ and 1″), and zooming into the central 50 × 50 kpc² in model gSdgSdo69. Some isophotes have been over-plotted in the smoothed images to remark the bending of the disc in both cases (green). In all cases μ_lim(V) = 26 mag arcsec⁻² (S/N = 5). For more information, see the caption of Fig. 5.
