Fig. 16

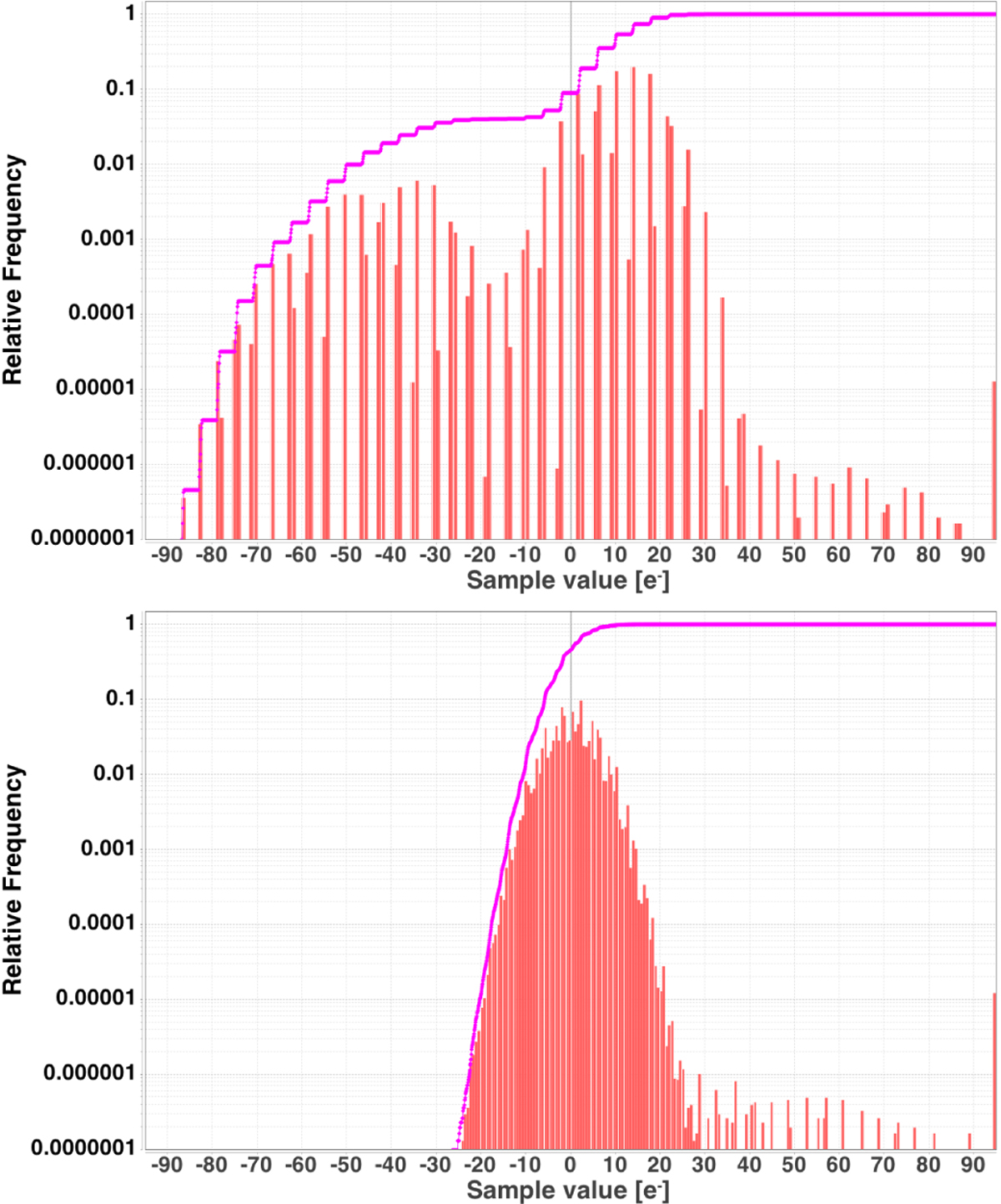

Sample distribution in the calibration data for RP in row 3 before (above) and after (below) calibration (from the same data) and removal of the calibrated offset excursions (features and colours otherwise the same as for Fig. 15). Quantisation at 1 ADU (=3.9 electrons; Table 1) is clear in the upper panel, but slightly washed out in the lower panel as a result of applying the offset model corrections to sample values.
