Kepler Object of Interest Network - I. First results combining ground- and space-based observations of Kepler systems with transit timing variations

Free Access

Fig. 4

Open with DEXTER Download original image

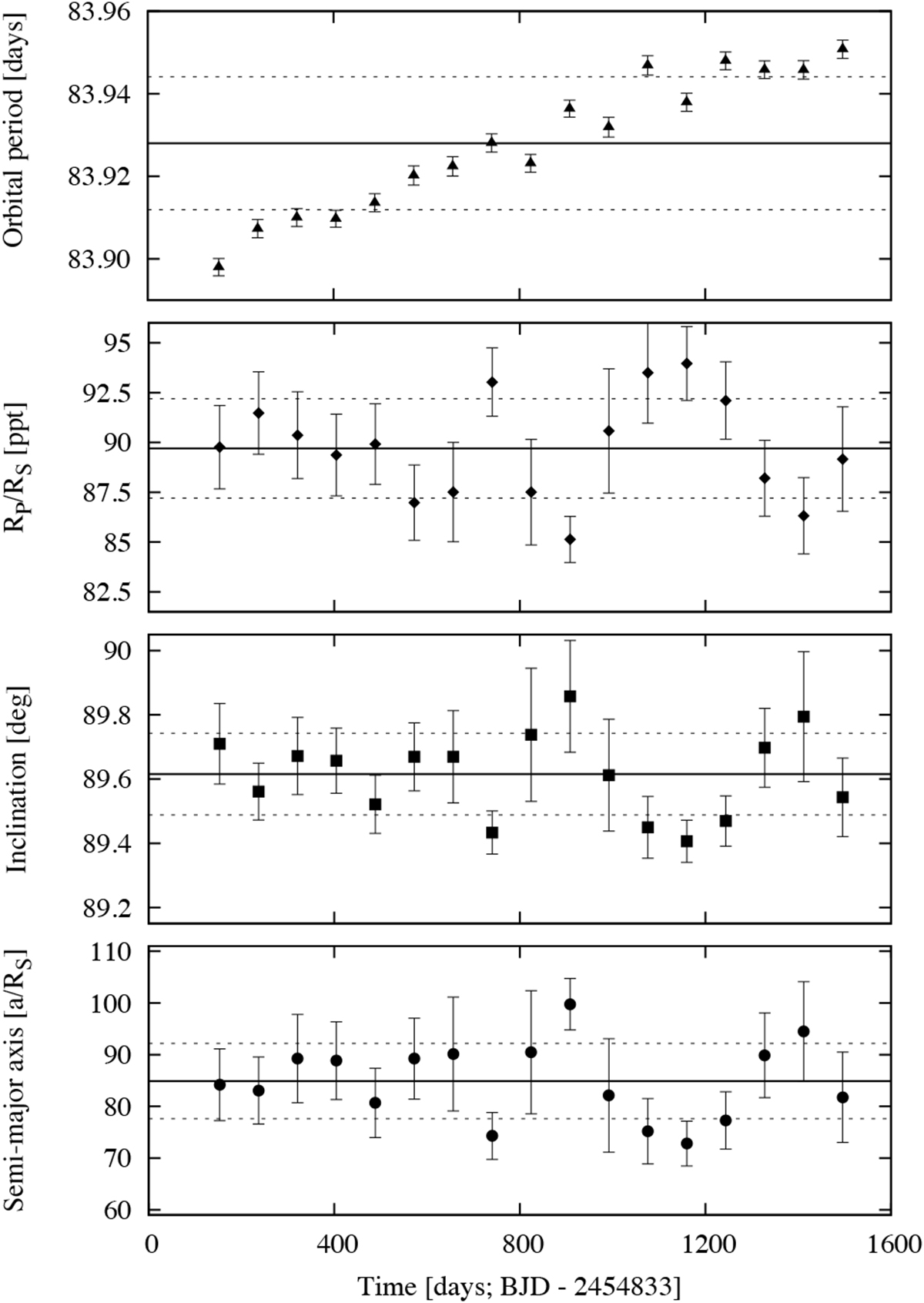

Time-dependent change in the transit parameters of KOI-0902.01. From top to bottom: orbital period in days (triangles); planet-to-star radius ratio, R_P∕R_S (diamonds); orbital inclination (squares), and semi-major axis in stellar radii, a∕R_S. Horizontal continuous and dashed lines show mean and standard deviations of the system parameters, respectively. Individual errors are given at the 1-σ level.
